Full Extension Drawer Slides

Full‑extension slides allow drawers to open completely for maximum visibility and easy access to stored items.

Showing all 5 results

2-Fold Soft Close Undermount Drawer Slides – Model 25.205

¥8.00

Model Number	25.205
Slide Type	2-fold 3/4 extension undermount
Opening Mechanism	Mechanical soft close
Applied thickness	16mm / 18mm
Load Capacity	25 kg
Durability	50000 cycles
Material	Cold-rolled steel
Finish	Galvanized / Zinc plated
Length Options	250mm – 550mm
Thickness	1.2 × 1.2 mm
Conector	Pin \| Handle
Warranty	5 years against manufacturing defects

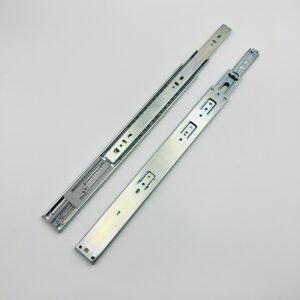

3-Fold Push to Open Ball Bearing Slides – Handleless Cabinet Hardware HongYi Hardware
¥5.00
Looking for reliable push to open drawer slides for modern handleless cabinets?
HongYi Hardware 3-Fold Push to Open Ball Bearing Slides are designed for high-end kitchen, wardrobe and office furniture, combining smooth movement, long service life and easy installation for global furniture manufacturers and hardware distributors.
Select options This product has multiple variants. The options may be chosen on the product page

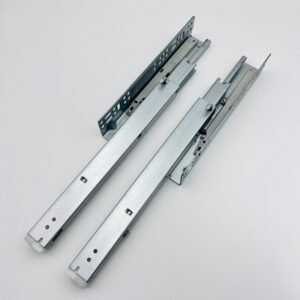

Model Number	25.304
Slide Type	3-fold full extension undermount
Opening Mechanism	Mechanical push to open (no soft close)
Applied thickness	16mm / 18mm
Load Capacity	35 kg
Durability	50000 cycles
Material	Cold-rolled steel
Finish	Galvanized / Zinc plated
Length Options	250mm – 800mm
Thickness	1.8 × 1.5 × 1.0 mm
Bracket Options	1D (vertical) or 3D (3-axis adjustment)
Warranty	5 years against manufacturing defects

¥5.00

Model Number	25.304
Slide Type	3-fold full extension undermount
Opening Mechanism	Mechanical push to open (no soft close)
Applied thickness	16mm / 18mm
Load Capacity	35 kg
Durability	50000 cycles
Material	Cold-rolled steel
Finish	Galvanized / Zinc plated
Length Options	250mm – 800mm
Thickness	1.8 × 1.5 × 1.0 mm
Bracket Options	1D (vertical) or 3D (3-axis adjustment)
Warranty	5 years against manufacturing defects

Model Number	25.303
Slide Type	3-fold full extension undermount
Soft Close	Integrated hydraulic damping
Applied thickness	16mm / 18mm
Load Capacity	35 kg
Durability	50000 cycles
Material	Cold-rolled steel
Finish	Galvanized / Zinc plated
Length Options	250mm – 800mm
Thickness	1.8 × 1.5 × 1.0 mm
Bracket Options	1D (vertical) or 3D (3-axis adjustment)
Warranty	5 years against manufacturing defects
