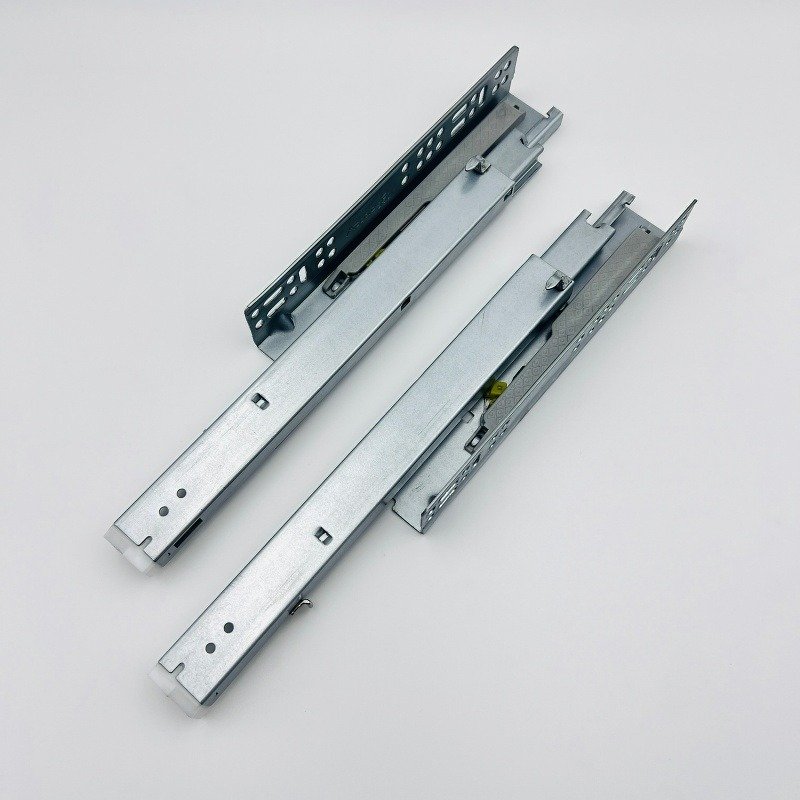

Soft close concealed undermount drawer slides 3-fold full extension for wooden drawers

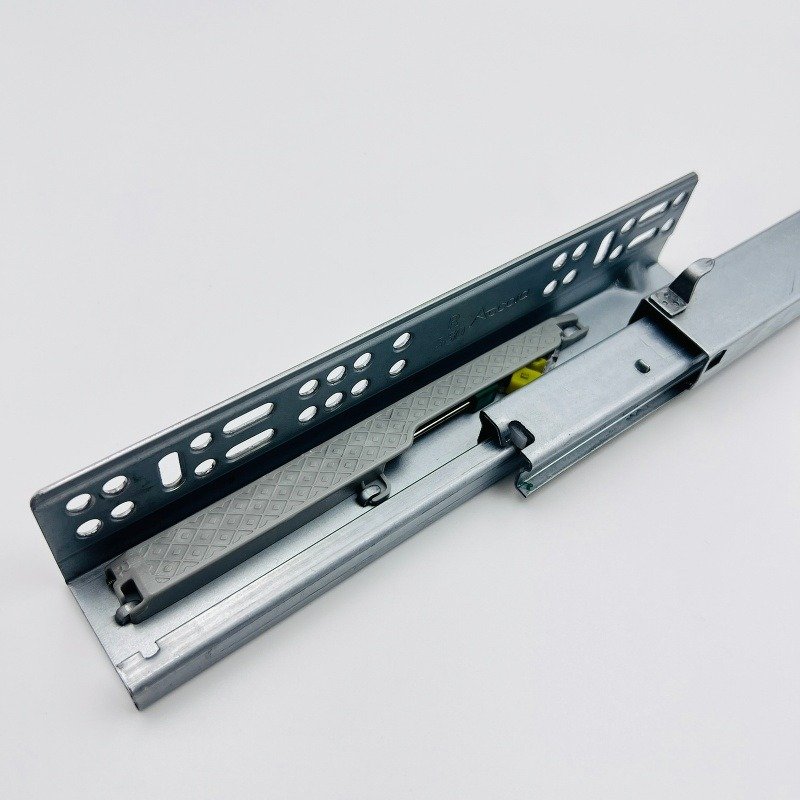

Soft Close Concealed Drawer Slides 3-Fold Full Extension | 3D/1D Bracket Options Model 25.303 - Image 2

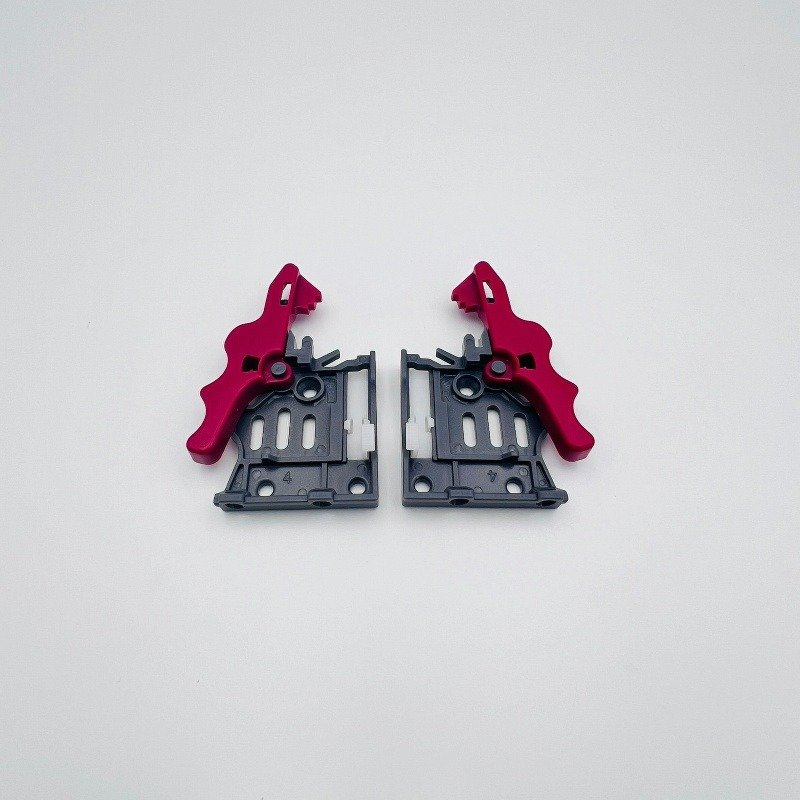

3D adjustable bracket for soft close concealed drawer slides allowing vertical/horizontal/depth adjustment

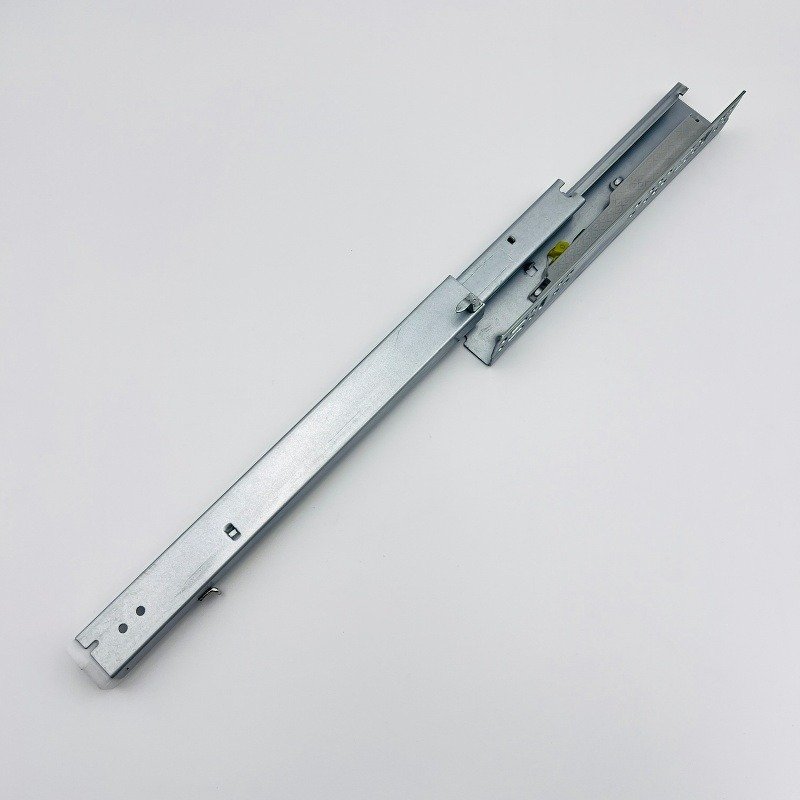

Soft Close Concealed Drawer Slides 3-Fold Full Extension | 3D/1D Bracket Options Model 25.303 - Image 4

Soft Close Concealed Drawer Slides 3-Fold Full Extension | 3D/1D Bracket Options Model 25.303

Model Number25.303
Slide Type3-fold full extension undermount
Soft CloseIntegrated hydraulic damping
Applied thickness16mm / 18mm
Load Capacity35 kg
Durability50000 cycles
MaterialCold-rolled steel
FinishGalvanized / Zinc plated
Length Options250mm – 800mm
Thickness1.8 × 1.5 × 1.0 mm
Bracket Options1D (vertical) or 3D (3-axis adjustment)
Warranty5 years against manufacturing defects
Add to quote
SKU: 25.303 Categories: , , ,
Share this product

Description

Concealed Drawer Slides 25.303 – 3-Fold Full Extension Soft-Close

The Model 25.303 concealed drawer slides are designed for premium cabinetry and furniture applications where a hidden, smooth and quiet solution is required.
Thanks to the 3-fold full-extension design and integrated soft-close, these slides provide full access to the drawer contents while closing gently and silently.

Key Features

  • Concealed undermount design for a clean and modern look inside the cabinet
  • 3-fold full-extension – pull out the drawer completely for easy access
  • Soft-close mechanism – controlled, quiet and safe closing every time
  • Optional 1D and 3D brackets for flexible adjustment and easier installation
  • Suitable for drawers with or without handles (handle options available)
  • High load capacity and long service life for everyday use
  • Ideal for kitchen cabinets, bathroom vanities, wardrobes and office furniture

Applications

Model 25.303 concealed drawer slides are an excellent choice for:

  • Modern kitchen cabinets and pantries
  • Bathroom drawer units and vanity cabinets
  • Bedroom wardrobes and storage furniture
  • Office and commercial cabinetry
  • Custom-made furniture projects

Installation & Bracket Options

These concealed undermount drawer slides are designed for quick and precise installation.
With optional 1D and 3D brackets, installers can fine-tune drawer alignment to achieve a perfect fit and smooth operation.
Please refer to the technical datasheet or contact our team for detailed installation instructions and recommended cabinet dimensions.

Benefits

  • Improved aesthetics with hidden slides and clean drawer sides
  • Enhanced user experience with full-extension and soft-close
  • Reduced noise and impact when closing drawers
  • Flexible adjustment with 1D / 3D bracket options
  • Suitable for both residential and commercial projects

Specifications

  • Model: 25.303
  • Type: Concealed drawer slides, undermount
  • Extension: 3-fold full extension
  • Function: Soft-close (soft closing)
  • Optional accessories: 1D bracket, 3D bracket
  • Application: Kitchen, bathroom, wardrobe, office and general furniture

If you need detailed measurements, load capacity or custom solutions for your project,
please contact us for a full technical datasheet and quotation.

Bulk Orders & OEM Inquiries Welcome

Get competitive pricing for container orders, custom packaging with your brand, or samples for testing.

✓ MOQ: 500 pairs ✓ Lead time: 25-35 days ✓ OEM branding available



FAQ

Frequently Asked Questions about Soft Close Concealed Drawer Slides

❓ What is the difference between 1D and 3D brackets for Model 25.303?

The 1D bracket provides vertical adjustment only – it’s a cost-effective solution for standard production runs. The 3D bracket allows adjustment in three dimensions: vertical, horizontal (side-to-side), and depth (in/out). This enables perfect alignment of drawer fronts after installation, ideal for custom cabinetry or high-end kitchens where aesthetics are critical.

❓ Can these undermount drawer slides be installed on existing drawers?

Model 25.303 is designed for new drawer construction, as it requires specific routing/grooves in the drawer bottom and sides. However, if you have flat-bottom drawers with sufficient clearance, retrofitting is possible. We recommend consulting our technical datasheet or contacting support for your specific application.

❓ What is the maximum drawer width for 45kg soft close slides?

For optimal performance at 45kg capacity, we recommend drawer width not exceeding 1200mm. Wider drawers may experience racking (twisting) under load. For extra-wide drawers, consider using two sets of slides or contacting us for heavy-duty alternatives.

❓ Do you offer custom lengths for bulk orders?

Yes, we can manufacture custom lengths for container orders. Standard lengths range from 270mm to 550mm. Please specify your required length and volume when requesting a quote, and our engineering team will confirm feasibility.

❓ How does HONGYI quality compare to European brands like Blum?

We position ourselves as a high-value alternative. While we adhere to similar testing standards (50,000 cycles, 48h salt spray), our manufacturing efficiency allows us to offer competitive pricing. Many European furniture makers choose HONGYI for projects where Blum specifications are required but budget constraints exist. We recommend ordering samples to evaluate performance firsthand.
