¥8.00| Model Number | 25.205 |
| Slide Type | 2-fold 3/4 extension undermount |
| Opening Mechanism | Mechanical soft close |
| Applied thickness | 16mm / 18mm |
| Load Capacity | 25 kg |
| Durability | 50000 cycles |
| Material | Cold-rolled steel |
| Finish | Galvanized / Zinc plated |
| Length Options | 250mm – 550mm |
| Thickness | 1.2 × 1.2 mm |
| Conector | Pin | Handle |
| Warranty | 5 years against manufacturing defects |
-

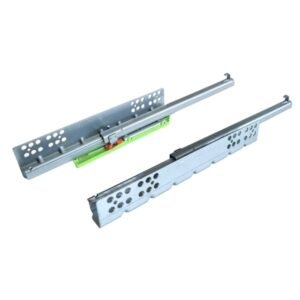

¥5.00| Model Number | 25.304 |
| Slide Type | 3-fold full extension undermount |
| Opening Mechanism | Mechanical push to open (no soft close) |
| Applied thickness | 16mm / 18mm |
| Load Capacity | 35 kg |
| Durability | 50000 cycles |
| Material | Cold-rolled steel |
| Finish | Galvanized / Zinc plated |
| Length Options | 250mm – 800mm |
| Thickness | 1.8 × 1.5 × 1.0 mm |
| Bracket Options | 1D (vertical) or 3D (3-axis adjustment) |
| Warranty | 5 years against manufacturing defects |
-

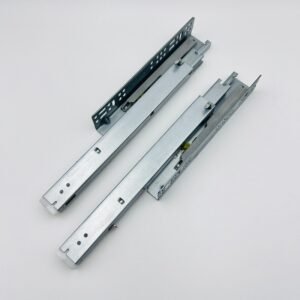

| Model Number | 25.303 |
| Slide Type | 3-fold full extension undermount |
| Soft Close | Integrated hydraulic damping |
| Applied thickness | 16mm / 18mm |
| Load Capacity | 35 kg |
| Durability | 50000 cycles |
| Material | Cold-rolled steel |
| Finish | Galvanized / Zinc plated |
| Length Options | 250mm – 800mm |
| Thickness | 1.8 × 1.5 × 1.0 mm |
| Bracket Options | 1D (vertical) or 3D (3-axis adjustment) |
| Warranty | 5 years against manufacturing defects |
