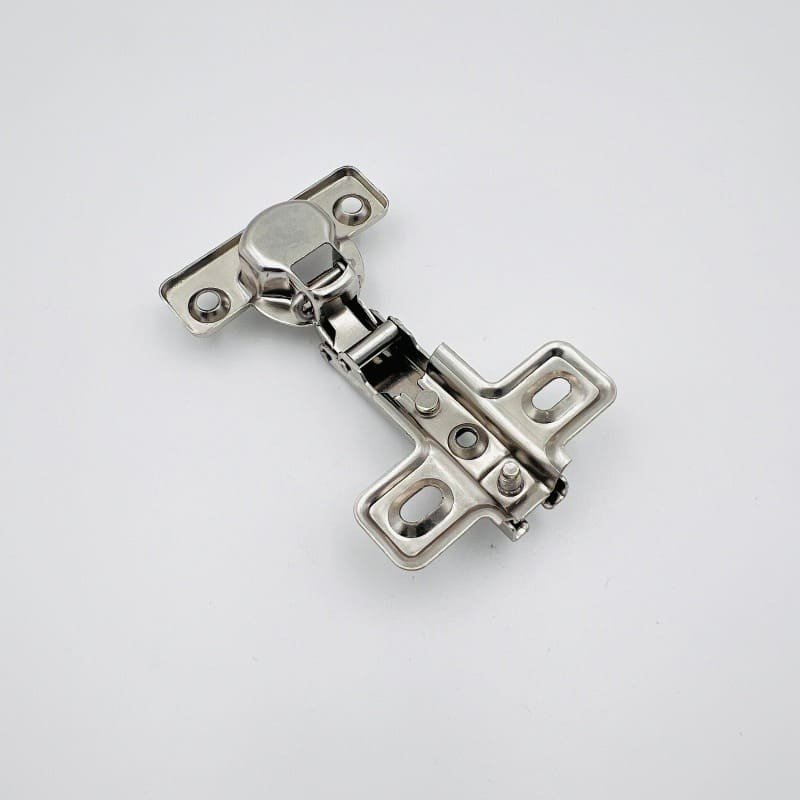

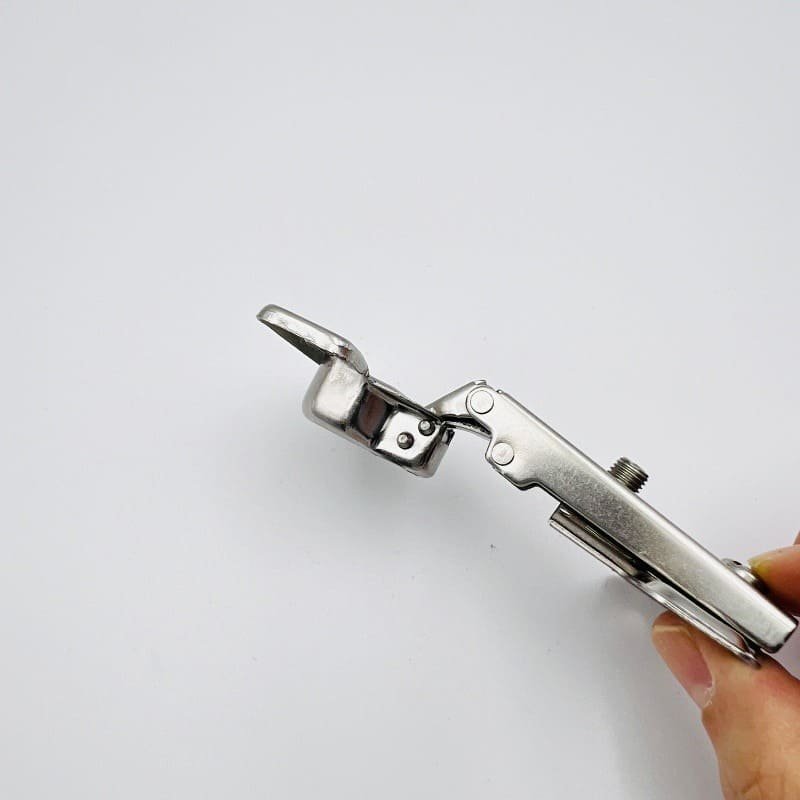

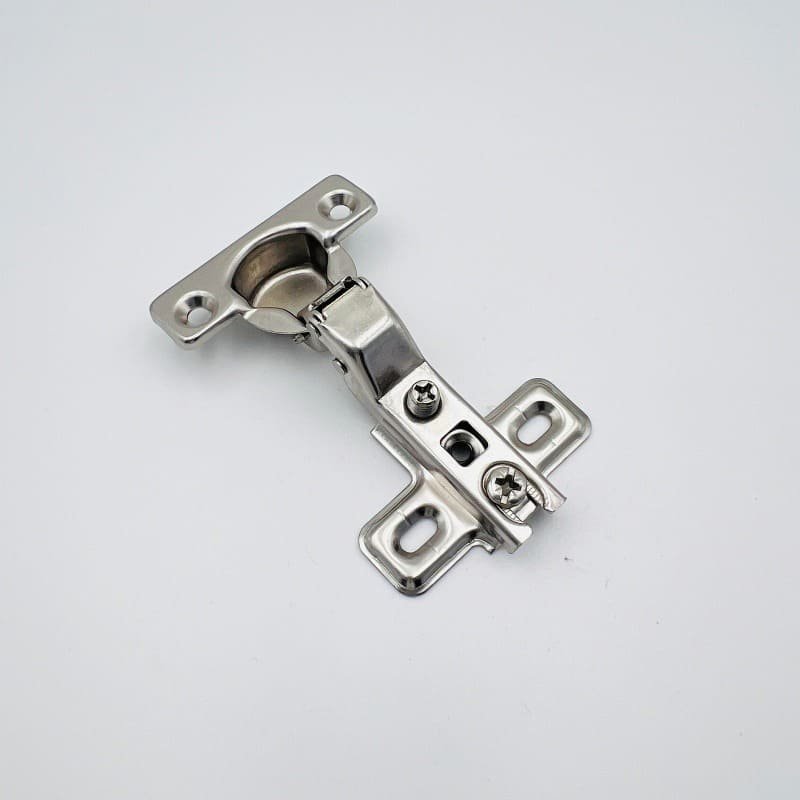

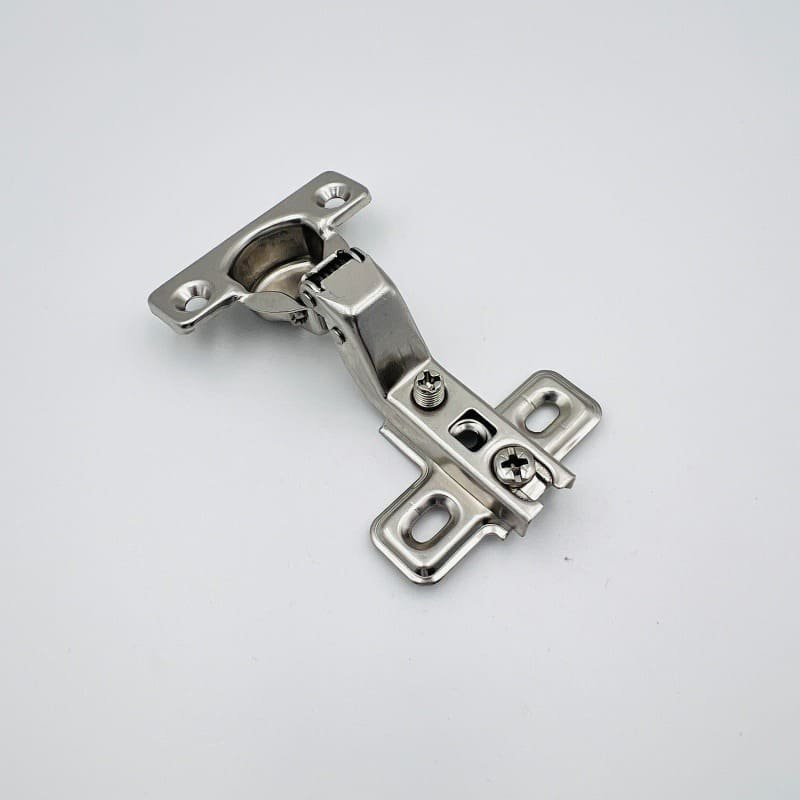

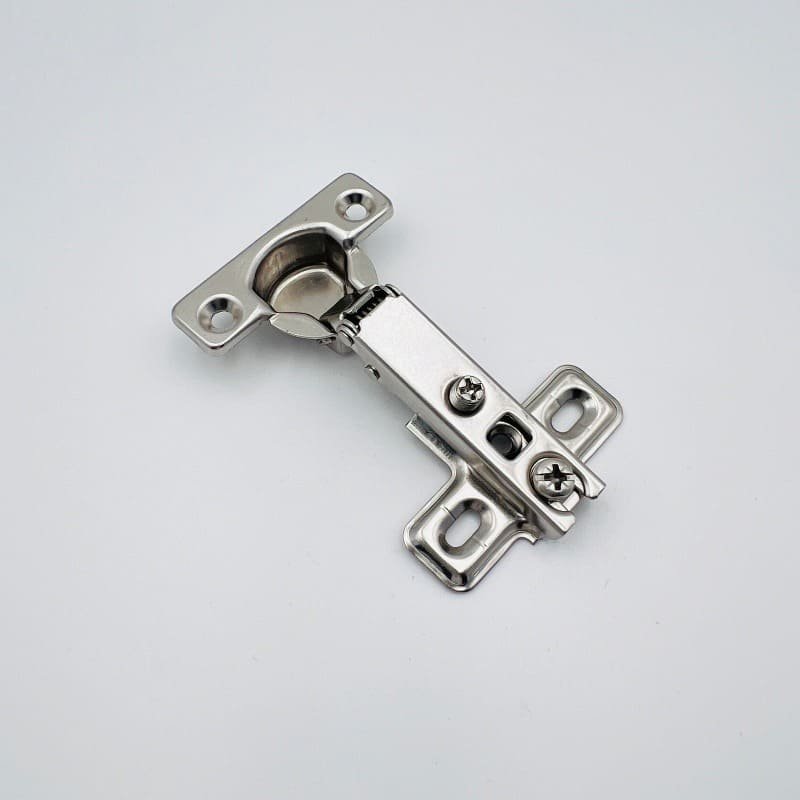

26mm Mini Hinge No Soft Close One-Way Cabinet Hinge 9.5mm Cup Depth Customizable Base Plate Model 1301

Q: What is a 26mm mini hinge? Why would I need this smaller size?

A: A 26mm mini hinge has a smaller cup diameter than the industry standard 35mm hinge. It’s designed specifically for applications where standard 35mm hinges cannot fit due to space constraints.

When you need a 26mm mini hinge:

• Narrow door frames: When door stiles/rails are less than 40mm wide, standard 35mm cups may be too large or cause structural weakness
• Small cabinets: Miniature cabinets, jewelry boxes, display cases where standard hinges would be visually oversized
• RV and marine applications: Compact furniture in recreational vehicles and boats where space is limited
• Furniture with thin profiles: Modern minimalist designs with very narrow frames
• Dollhouses and miniatures: Scale models and miniature furniture projects

The 26mm cup removes less material from the door, maintaining structural integrity in narrow frames while providing the same 100-105° opening angle as standard hinges.

Keywords: 26mm mini hinge definition, why use mini hinge, narrow frame hinge, small cabinet hinge

Q: What’s the difference between this 26mm hinge and a standard 35mm hinge? Can they be used interchangeably?

A: No, 26mm and 35mm hinges are NOT interchangeable. They require different drilling equipment and have different mounting specifications.

⚠️ Important: If your production line currently uses 35mm hinges, switching to 26mm will require new drilling equipment. However, the 26mm size opens up possibilities for products that couldn’t use concealed hinges before.

Keywords: 26mm vs 35mm hinge, mini hinge vs standard, hinge size comparison

Q: Can you explain the different base plate options? How do I choose the right one?

A: Model 1301 offers four base plate configurations to match different installation needs and regional preferences. Here’s a detailed breakdown:

🔩 Plate Type 1: 2-Hole Flat (H=0) – Self-Tapping Screw

• Screw type: Self-tapping screws (typically for wood/metal frames)
• Height: H=0 (flat, no offset)
• Best for: Quick installation, markets where self-tapping screws are preferred, frames that accept self-tapping screws directly

🔩 Plate Type 2: 2-Hole Flat (H=0) – Euro Screw

• Screw type: Euro screws (dowel-style with larger threads)
• Height: H=0 (flat, no offset)
• Best for: Standard European mounting, pre-assembled euro screws available for faster production, applications requiring euro screw holding power

🔩 Plate Type 3: 2-Hole Offset (H=2) – Euro Screw

• Screw type: Euro screws
• Height: H=2 (2mm offset from cabinet side)
• Best for: When door requires additional reveal, alignment adjustments, or compensating for door thickness variations

🔩 Plate Type 4: 4-Hole Flat (H=0) – Euro Screw

• Screw type: Euro screws
• Height: H=0 (flat)
• Best for: Maximum stability, heavy-duty applications, doors that will experience frequent use, when extra holding power is needed

How to choose: Consider your door weight, frame material, regional screw preferences, and whether you need offset adjustment. If unsure, the 2-hole flat euro screw plate is the most common choice. Contact our sales team for recommendations based on your specific application.

Keywords: mini hinge base plate options, 2 hole vs 4 hole, H0 vs H2 offset, self tapping vs euro screw

Q: For the euro screw plates, can they come with pre-assembled screws to save installation time?

A: Yes! For the 2-hole euro screw plates (both H=0 and H=2), we offer pre-assembled euro screws as an option.

Pre-assembled euro screws benefits:

• Faster installation: Screws are already threaded into the plate when you receive them – workers don’t need to handle separate screws
• Reduced screw loss: No loose screws to drop or lose on the production floor
• Consistent positioning: Screws are pre-aligned for perfect fit every time
• Estimated time savings: 5-10 seconds per plate – significant on high-volume production lines

How it works: Euro screws are partially inserted into the plate during manufacturing. When you receive them, simply position the plate on the cabinet side and drive the screws with a power screwdriver – they’re already started for you.

Availability: Pre-assembled euro screws are available on both 2-hole plate options (H=0 and H=2). Please specify when ordering if you want this feature.

Keywords: pre-assembled euro screws, quick installation plate, time saving hinge, production efficiency mini hinge

Q: What door thickness is compatible with this 9.5mm cup depth hinge?

A: Model 1301 with 9.5mm cup depth is suitable for door thicknesses from 12mm to 18mm, with 12-16mm being the optimal range.

⚠️ Note: Unlike standard 35mm hinges which typically use 12mm drilling depth, 26mm mini hinges require precise depth control. Always test on scrap material before production runs.

Keywords: door thickness compatibility, 9.5mm cup depth, drilling depth mini hinge, 12mm door hinge

Q: I see that “hinge thickness can be customized.” What does this mean and what are the options?

A: Yes, Model 1301 offers customization of the hinge material thickness to meet your specific strength requirements or production standards.

What can be customized:

• Hinge body thickness: The main structural part of the hinge can be manufactured with different material gauges
• Hinge cup thickness: The cup that inserts into the door can be adjusted
• Mounting plate thickness: Base plates can be customized for different strength requirements

Why customize thickness:

• Heavier doors: If your application requires extra strength, thicker material provides higher load capacity
• Cost optimization: For very light-duty applications, thinner material may be sufficient and more economical
• Matching existing standards: If you have existing hinges with specific thicknesses, we can match them for consistency
• Regional preferences: Some markets prefer heavier-gauge materials as a quality indicator

How to order: Contact our sales team with your desired specifications (e.g., “I need 1.2mm body thickness instead of standard”) and we’ll provide pricing and MOQ information for custom thicknesses.

Keywords: custom hinge thickness, hinge material customization, adjustable hinge strength, OEM hinge specifications

Q: What is the weight capacity of this 26mm mini hinge?

A: As a mini hinge designed for smaller applications, Model 1301 has a moderate load capacity suitable for lightweight to medium doors.

• Standard load rating: 2-3 kg per hinge (depending on material thickness selected)
• For a typical cabinet with 2 hinges: Supports 4-6 kg total door weight
• For wider doors with 3 hinges: Supports 6-9 kg total door weight

Factors affecting capacity:

• The hinge thickness you choose (customization option)
• Door material and screw holding strength
• Base plate type (4-hole provides more stability than 2-hole)
• Installation quality

These hinges are designed for small cabinets, narrow frames, and lightweight applications – not for heavy solid wood doors. If you need higher capacity, consider our standard 35mm hinges or contact us about custom thickness options.

Keywords: mini hinge weight capacity, 26mm hinge load rating, small cabinet hinge strength

Q: What tools are needed to install these 26mm mini hinges? Do I need special equipment?

A: Yes, you will need a 26mm Forstner bit for drilling the cup holes. This is different from the standard 35mm bits used for regular hinges.

Required tools:

• 26mm Forstner bit: The most important specialized tool – must be 26mm diameter, not 35mm
• Drill or drilling machine: Standard drill press or CNC can be used with the correct bit
• Screwdriver: For driving screws (standard Phillips or Pozi drive)
• Template or jig: Recommended for consistent positioning, especially in production

Important notes:

• 26mm Forstner bits are readily available from tool suppliers – we can recommend sources if needed
• If your production line currently uses 35mm hinges, you will need to add 26mm bits for this product
• Depth stop settings will also be different (9.5mm cup depth requires precise depth control)
• Test on scrap material first to perfect your setup

We recommend ordering samples first to test your drilling setup before committing to bulk orders.

Keywords: 26mm Forstner bit, mini hinge installation tools, special hinge drilling, 26mm drill bit

Q: What are the most common applications for this 26mm mini hinge?

A: Model 1301 is used in a wide range of applications where standard 35mm hinges are too large:

• Small kitchen cabinets: Compact kitchens, kitchenettes, office minibars
• Narrow frame furniture: Furniture with slim profiles, contemporary designs with minimal frames
• RV and marine cabinets: Space-constrained storage in recreational vehicles, boats, yachts
• Display cases and vitrines: Glass-fronted display cabinets with narrow frames
• Jewelry boxes and keepsake boxes: Small decorative boxes requiring concealed hinges
• Dollhouses and miniature furniture: Scale models, dollhouse construction, miniatures
• Electronics enclosures: Small access panels for electronic equipment
• Import replacement: Direct replacement for imported furniture with 26mm hinges
• Children’s furniture: Small-scale furniture for kids’ rooms
• Sample cases and presentation boxes: Professional cases requiring compact hinges

If you have an application with very narrow frames or small doors, this is likely the hinge you need.

Keywords: mini hinge applications, narrow frame hinge uses, small cabinet hinge, RV cabinet hinge

Q: What quality testing does Model 1301 undergo? Is it reliable for commercial use?

A: Despite its small size, Model 1301 is manufactured to professional standards with comprehensive testing:

• Cycle testing: 30,000+ open-close cycles (equivalent to years of household use)
• Salt spray testing: 24-48 hours corrosion resistance (nickel-plated finish)
• Load testing: Verified at rated capacities (2-3 kg per hinge depending on thickness)
• Material verification: Thickness confirmed to specifications
• Dimensional accuracy: 26mm cup diameter precisely maintained
• 100% visual inspection: Every hinge checked before packaging

Custom thickness testing: If you order custom material thicknesses, we will conduct additional testing to verify performance at that specification.

Batch test reports available upon request. Third-party inspection welcome.

Keywords: mini hinge quality, 30000 cycle test, salt spray test, hinge reliability

Q: Can I get samples to test before placing a bulk order?

A: Yes, sample testing is strongly recommended – especially for a specialized product like 26mm mini hinges where drilling equipment and fit are critical.

• Free samples: 2-5 pieces per model (you pay shipping)
• Shipping: DHL/FedEx/UPS delivery in 3-5 business days worldwide
• Sample cost for larger quantities: If you need 20+ pieces for production testing, we charge cost price (deducted from first bulk order)
• Sample production time: In-stock items ship within 24 hours

When requesting samples, please specify:

• Your preferred base plate type (2-hole H0 self-tapping, 2-hole H0 euro, 2-hole H2 euro, or 4-hole H0)
• Whether you want pre-assembled euro screws (if applicable)
• Any custom thickness requirements
• Your door thickness for testing

Testing samples lets you verify the 26mm drilling requirement, base plate compatibility, and overall quality before committing to container orders.

Keywords: 26mm hinge samples, mini hinge samples, test before bulk order, sample testing policy

Q: What are the MOQ and pricing for Model 1301? How do volume discounts work?

A: As a factory-direct supplier, we offer tiered pricing based on quantity:

• Sample quantity: 2-50 pcs (for testing)
• Small trial order: 500-2,000 pcs (MOQ 500 pcs)
• Wholesale quantity: 2,000-10,000 pcs (better pricing)
• Volume discount: 10,000-50,000 pcs (significant savings)
• Container pricing: 50,000+ pcs / full container (best value)

Price includes:

• Hinge with your choice of base plate type
• Mounting screws included
• Standard export packaging
• Pre-assembled euro screws (if selected)

Custom thickness pricing: Custom material thicknesses may have different pricing and MOQ requirements. Please contact our sales team with your specifications.

Mixed containers: You can combine Model 1301 with other hinge models in one container – total volume counts toward discount tiers.

Keywords: mini hinge MOQ, factory direct pricing, volume discounts, custom hinge pricing

Q: How is Model 1301 packaged? How many pieces fit in a container?

A: Our standard export packaging is optimized for protection and maximum container utilization:

• Inner bag: 250 or 300 pcs per large transparent bag (anti-rust protection)
• Master carton: 25o or 300 pcs per carton (approximate dimensions based on plate type)
• 20ft container: Approximately 480,000 pcs

Custom packaging options:

• Branded boxes with your logo (MOQ: 20,000 pcs)
• Custom printing on inner bags (MOQ: 20,000 pcs)
• Master carton branding (MOQ: 20,000 pcs)

The smaller 26mm size means you can fit the same number of pieces per container as standard hinges – excellent shipping efficiency.

Keywords: mini hinge packaging, export packaging, container capacity, 380000 pieces per container

Q: How does Model 1301 compare to other 26mm mini hinges on the market?

A: Model 1301 offers several advantages over generic 26mm mini hinges:

The key differentiators are our flexible base plate options, pre-assembled screw availability, and customization capabilities. If you need a 26mm mini hinge that can be tailored to your specific production needs, Model 1301 is the superior choice.

Keywords: mini hinge comparison, best 26mm hinge, hinge supplier comparison

Q: Do you offer OEM/custom branding on Model 1301?

A: Yes, we offer full OEM services for Model 1301. Many furniture manufacturers and hardware distributors private label this mini hinge for their product lines.

OEM options:

• Custom packaging: Branded boxes with your design, logo, and local language text (MOQ: 5,000 pcs)
• Custom printing on bags: Your brand on the transparent inner bags (MOQ: 10,000 pcs)
• Laser engraving: Your logo on the hinge arm (MOQ: 20,000 pcs)
• Custom barcodes: Your SKU numbers and barcodes on packaging
• Master carton printing: Your brand on outer cartons (MOQ: 5,000 pcs)
• Custom specifications: We can manufacture to your exact material thickness and base plate requirements

Send us your artwork or requirements – we create samples for approval before mass production. This helps you build your local brand while sourcing quality 26mm mini hinges from our factory.

Keywords: OEM mini hinge, private label 26mm hinge, custom branding, hinge packaging customization

Q: What documentation do you provide for export shipments?

A: We provide complete export documentation for all shipments:

• Commercial invoice (with detailed product description and values)
• Packing list (detailed by carton with weights and dimensions)
• Bill of lading (original or telex release)
• Certificate of Origin (CO)
• Form E (for shipments to certain countries with trade agreements)
• Inspection reports (if third-party inspection conducted)
• Material specifications (upon request)
• Test reports (batch test results available)

We have extensive experience shipping to Europe, South America, North America, Middle East, Africa, and Asia and understand the documentation requirements for each market.

Keywords: export documentation, certificate of origin, shipping documents, mini hinge export

Q: What is your warranty and after-sales support policy?

A: We stand behind Model 1301 with clear policies and responsive support:

• 1-year warranty against manufacturing defects
• Replacement or credit for defective pieces (pro-rated based on quantity)
• 24-hour response time to quality inquiries via email or WhatsApp
• Batch sample retention: We keep samples from every production run for 2 years
• Technical support: Installation advice and troubleshooting available
• Custom support: For custom thickness orders, we provide additional technical guidance

Our goal is long-term partnership, not one-time sales. We’ve supplied hinges to the same customers for many years – your success is our success.

Keywords: mini hinge warranty, after-sales support, replacement policy, technical support

Q: For the 500 pcs MOQ, can I mix different base plate types in one order?

A: Yes, absolutely! The 500 pcs MOQ can be mixed across different base plate configurations.

Example mixed order:

• 200 pcs – 2-hole H0 self-tapping
• 150 pcs – 2-hole H0 euro with pre-assembled screws
• 150 pcs – 4-hole H0 euro
• Total: 500 pcs – meets MOQ

This flexibility allows you to:

• Test different plate types in your production line
• Stock multiple configurations for different projects
• Meet the needs of various customers or applications
• Reach MOQ more easily when starting with a new product

When ordering, simply specify the quantity needed for each base plate type. We’ll package them separately with clear labeling.

Keywords: mixed MOQ, combine hinge types, flexible minimum order, test multiple options
