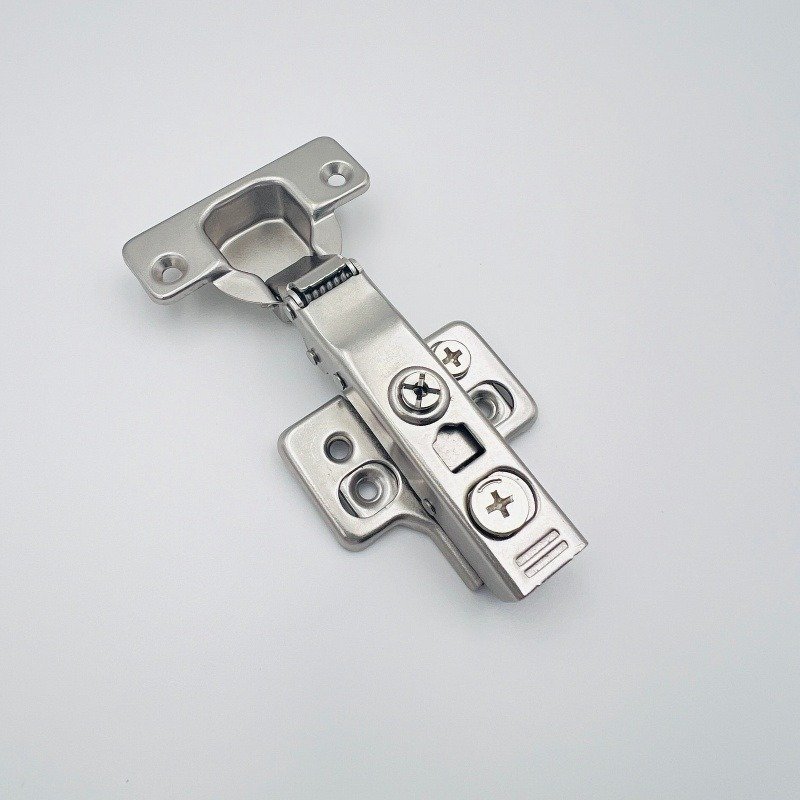

One-Way Hydraulic 3D Adjustable Concealed Hinge-Model 1404
- Model Number: 1404
- Mechanism: 1-Way Hydraulic Soft Close

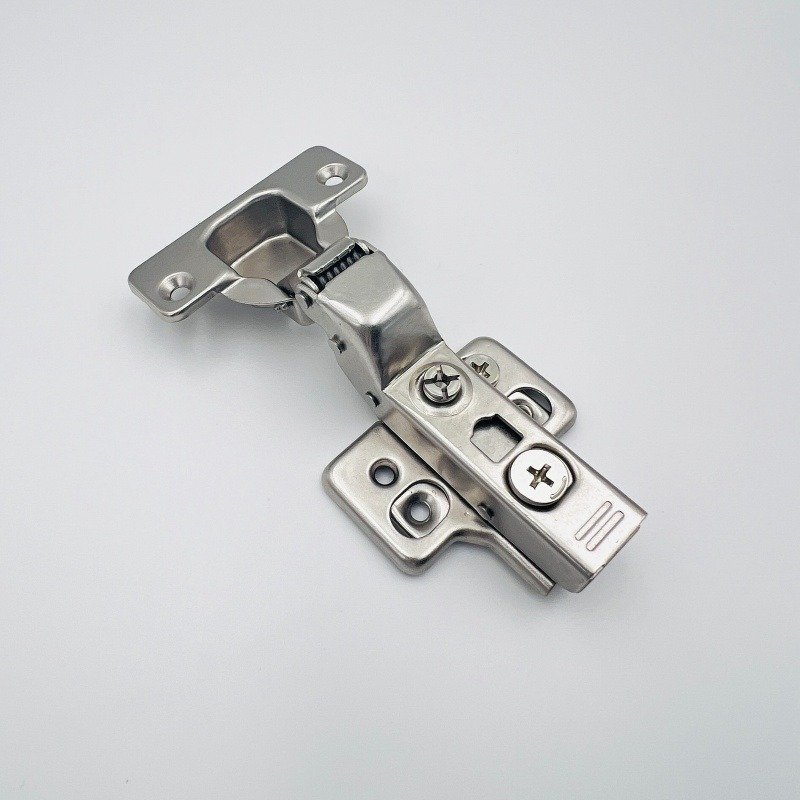

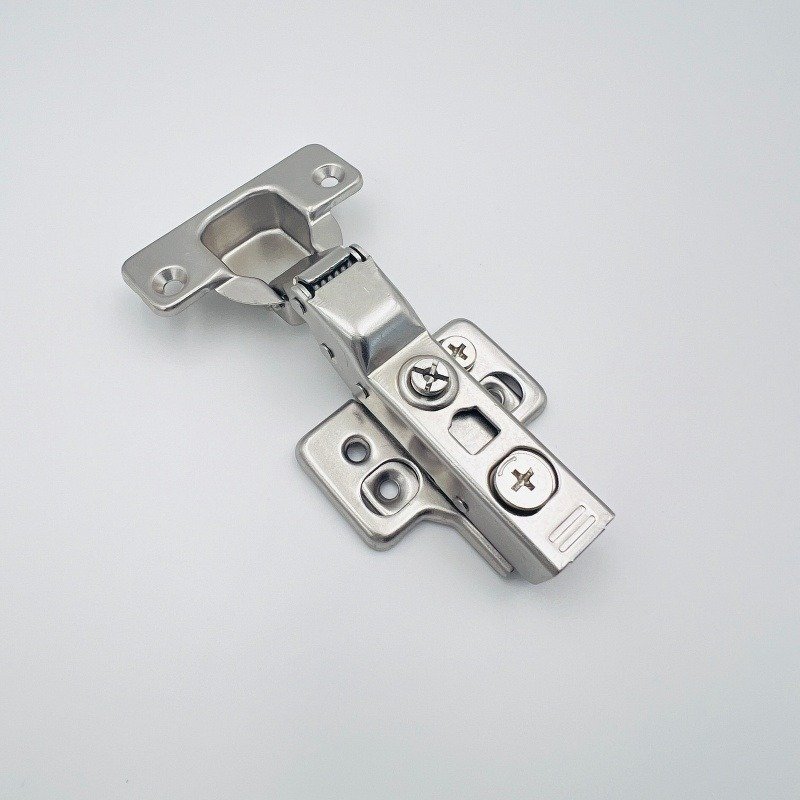

- Cover Option: Full Overlay, Half Overlay, Insert
- Adjustment: 3D (Depth, Side, Height) via cam screws
- Material: Cold-Rolled Steel (Nickel Plated/ Black)
- Cycle Test: Pass 50 000 times
- Salt Spray: 48 H
- Availability: Factory direct wholesale, OEM/ODM supported.
- Cooperation Term: FOB
- Shipping Port: Shantou or Shenzhen
- Country of Origin: China
- HS Code: 83021000
- MOQ: 10 000 pcs
- Production Time: 30 Days
Description
What is a 1-Way Hydraulic Hinge?
Unlike standard hinges, our 1-way hydraulic mechanism ensures a continuous, smooth, and silent soft-close action from the moment the cabinet door is pushed. It eliminates slamming noises, protects the cabinet structure, and provides a premium feel to any kitchen or bathroom cabinetry.
Core Features & Advantages
• One-way hydraulic soft closing for smooth and silent performance
• 3D adjustment: side, height, and depth for flexible installation
• High-quality cold‑rolled steel with durable nickel plating
• Long-lasting hinge mechanism tested for heavy-duty furniture use
• Stable batch quality suitable for furniture factories and distributors
• Competitive factory pricing for EU and South American markets
• Supports OEM and customization options
Heavy-Duty Cold-Rolled Steel
Manufactured from premium cold-rolled steel, this concealed hinge is built for longevity. It undergoes strict open-close cycle testing to ensure it withstands daily heavy use without losing its damping effect.
Cost-Effective Factory Sourcing
By cutting out the middlemen, HONGYI delivers maximum value. You get high-end, European-standard 3D adjustable hinges at highly competitive wholesale prices, allowing you to maximize your profit margins.
Specifications
| Model NO. | 1404 |
| Product Name | One-Way Hydraulic 3D Adjustable Concealed Hinge |
| Material | Cold-Rolled Steel |
| Opening Angle | 100° – 110° |
| Hinge Cup Diameter | 35 mm |
| Hinge Cup Depth | 11.5 mm |
| Hole Distance | 45 | 48 | 52 mm |
| Base Plate | H=0 | Wood-screw Hole or Euro-screw Hole |
| Closing Mechanism | 1-Way Soft Close (Hydraulic Damper) |

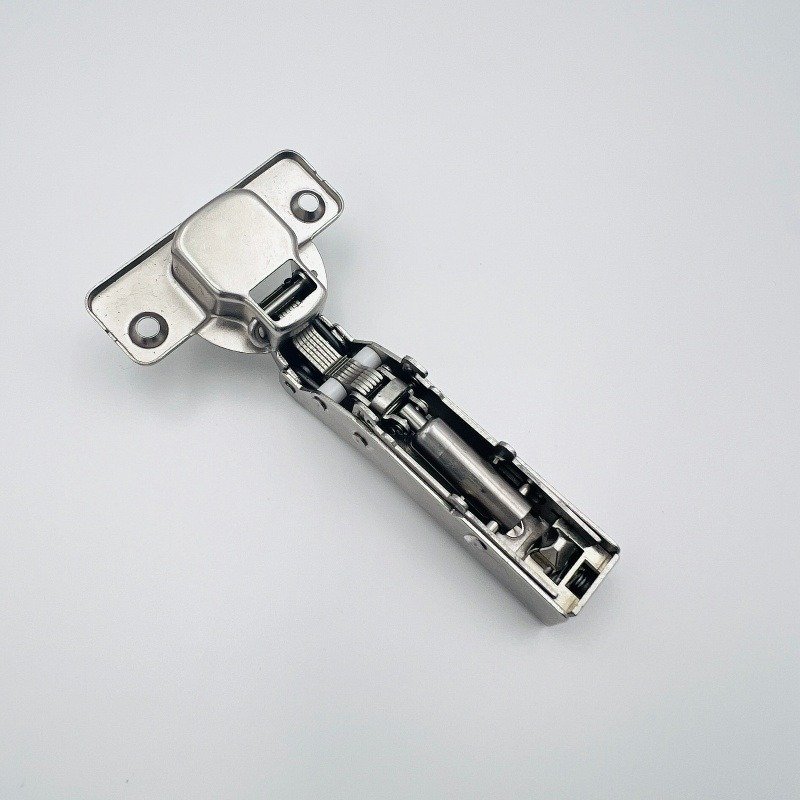

| Adjustment Function | 3-Dimensional (Depth, Side, Height) |
| Overlay Options | Full Overlay / Half Overlay / Insert |

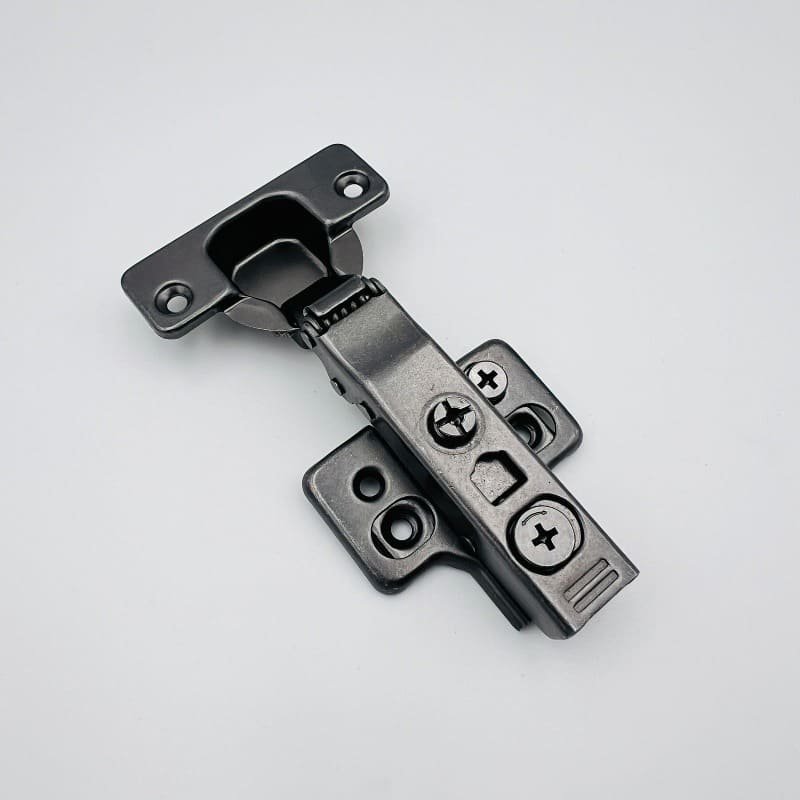

| Finish | Nickel Plated or Black (Rust Resistant) |
| Application | Kitchen Cabinets, Wardrobes, Bathroom Vanities |
| Country of Origin | China |
| HS Code | 83021000 |
| Production Time | 30 Days |
FAQ
Q1: Is Model 1404 suitable for kitchen and bathroom cabinets?
A1: Yes, the hinge is designed for kitchen cabinets, wardrobes, and bathroom vanities. The nickel-plated surface provides strong corrosion resistance.
Q2: What is the opening angle of this hinge?
A2: The standard opening angle is 100–110 degrees. Custom angles are available for OEM orders.
Q3: Can I adjust the hinge after installation?
A3: Yes. It offers full 3D adjustment: ±2mm side adjustment, ±3mm depth, and ±2mm height.
Q4: Do you support bulk orders or customization?
A4: Yes, we provide OEM services, stamp your brand on the hinge cup, customized packaging, and stable bulk supply for distributors and factories.
