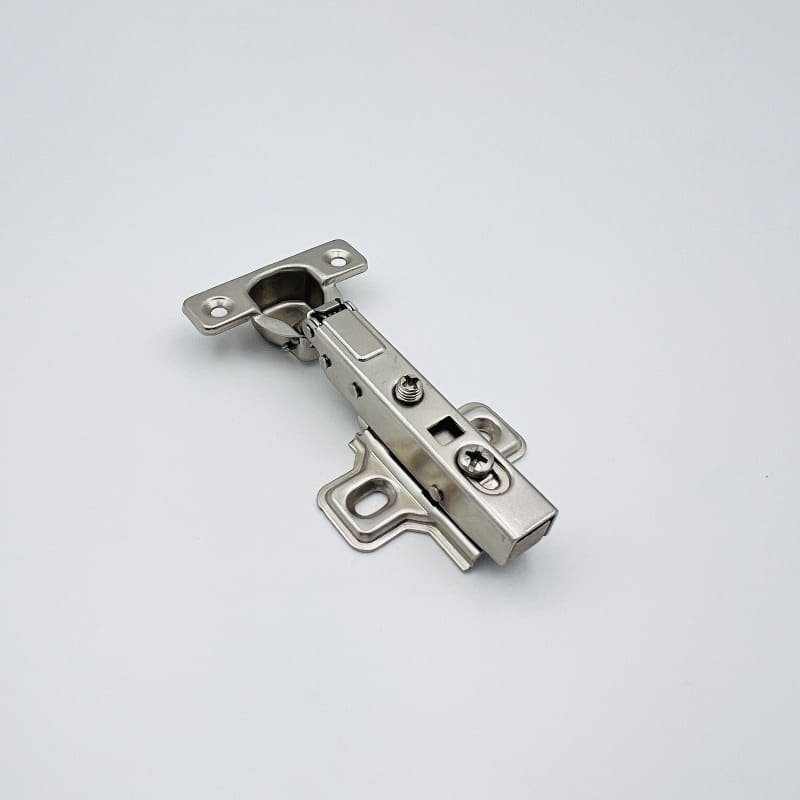

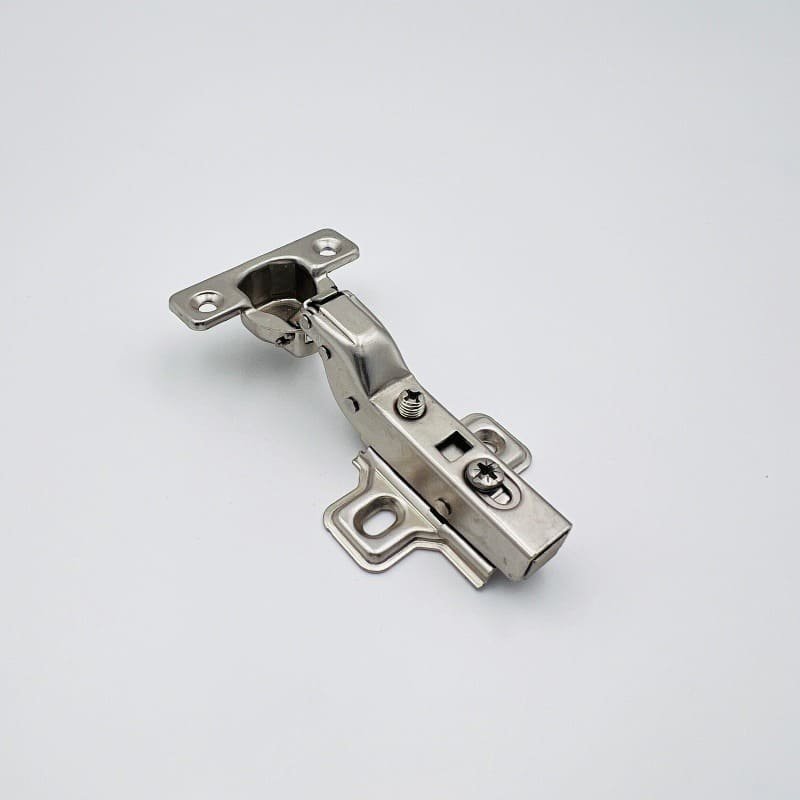

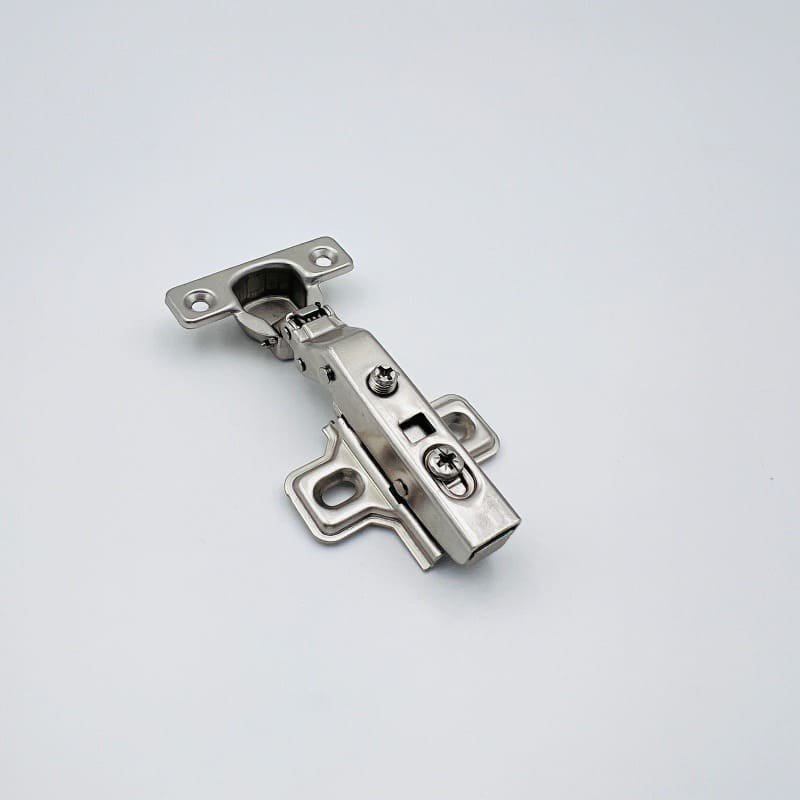

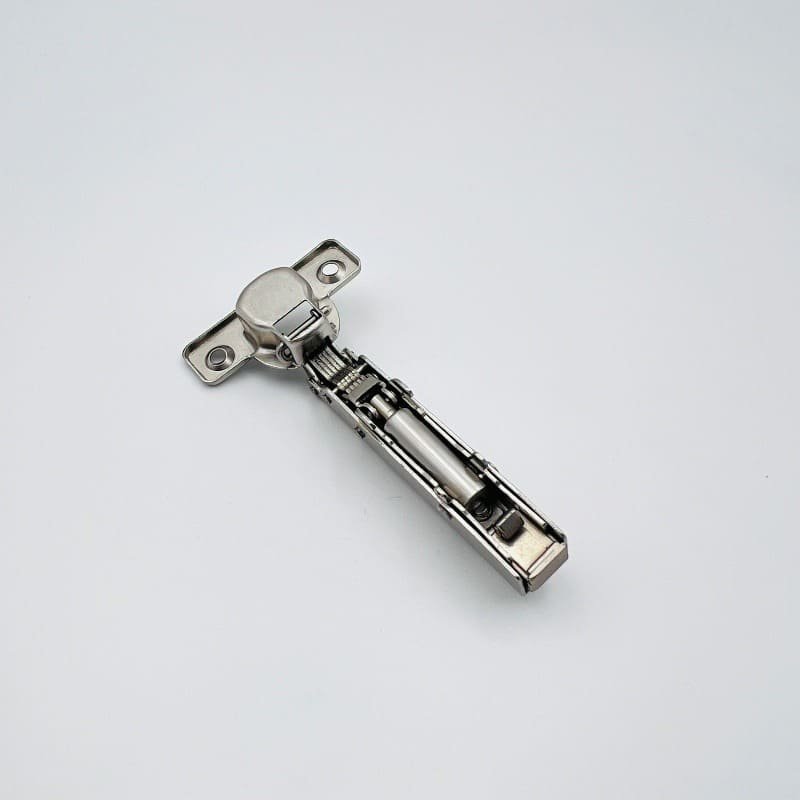

26mm Mini Soft-Close Clip‑On Cabinet Hinge for Narrow Frames — Model 1305
Specially designed for narrow frame cabinet doors where standard 35mm cup hinges cannot be used.
- Model Number: 1305
- Mechanism: Soft Close
- Cover Option: Full Overlay, Half Overlay, Insert
- Hinge Type: 26mm Mini Cup
- Material: Cold-Rolled Steel (Nickel Plated)
- Cycle Test: Pass 30 000 times
- Salt Spray: 24 H
- Availability: Factory direct wholesale, OEM/ODM supported.
- Cooperation Term: FOB
- Shipping Port: Shantou/Shenzhen, China
- Country of Origin: China
- HS Code: 83021000
- MOQ: 10 000 pcs
- Production Time: 30 Days
Description
26mm Mini Soft Close Clip On Cabinet Hinge – Model 1305
HONGYI Hardware model 1305 is a 26mm mini soft close cabinet hinge designed for narrow frame doors and compact cabinets. When a standard 35mm cup hinge does not fit, this mini hinge offers a reliable and cost-effective solution for modern kitchen and wardrobe projects.
Key Features
- 26mm mini hinge cup for narrow frames and small doors
- Soft close function for smooth and quiet door closing
- Clip-on design for quick installation and easy door removal
- Concealed hinge style for a clean, modern cabinet appearance
- Suitable for kitchen cabinets, wardrobes, bathroom cabinets and storage units
- Stable quality with factory-direct pricing for OEM/ODM customers
Typical Applications
- Narrow frame kitchen wall cabinets and overhead cupboards
- Bedroom wardrobes and built-in closets
- Bathroom vanities, laundry cabinets and shoe cabinets
- Small office cabinets and utility storage units
Recommended Markets
Model 1305 is widely used by cabinet manufacturers and hardware distributors in:
- European countries: Germany, Italy, Spain, France, Poland and more
- South American countries: Brazil, Chile, Argentina, Mexico, Peru and others
Why Choose HONGYI 26mm Mini Hinge 1305?
- Professional manufacturer of cabinet hinges and drawer slides
- Competitive pricing and flexible MOQs for wholesalers and importers
- Custom packaging and branding for long-term partners
Request a Quote
Contact HONGYI Hardware for detailed specifications, samples and bulk pricing for model 1305 26mm mini soft close cabinet hinge. Our team supports OEM projects and long-term supply for kitchen and furniture factories in Europe and South America.
Specifications
| Model NO. | 1305 |
| Product Name | 26mm Soft Close Hinge for Narrow Frame Cabinets – Clip On, Ideal for Kitchen & Wardrobe |
| Material | Cold-Rolled Steel |
| Opening Angle | 90°-95° |
| Hinge Cup Diameter | 26 mm |
| Hinge Cup Depth | 10.2 mm |
| Hole Distance | 38 mm |
| Door Thickness | 14-18mm |
| Base Plate | 2-hole (H=0 self-tapping/euro) / 4-hole (H=0) |
| Closing Mechanism | one way soft close |
| Overlay Options | Full Overlay / Half Overlay / Insert |
| Finish | Nickel Plated (Rust Resistant) |
| Installation Type | Clip on |
| Country of Origin | China |
| HS Code | 83021000 |
| Production Time | 30 Days |
| Packing | 250 pcs/polybag/carton or customized |
Packaging & Shipping
Customizable for OEM Orders
- Inner bag: 250 pcs per large transparent bag
- Master Carton: 250 pcs/carton
- Carton Size: 39*30*19 CM
- GW/NW: 18.5KG / 18KG
- Port of Loading: Shantou/Shenzhen/Guangzhou, China
- Custom Packaging: Available (Branded boxes, polybags, etc.)
