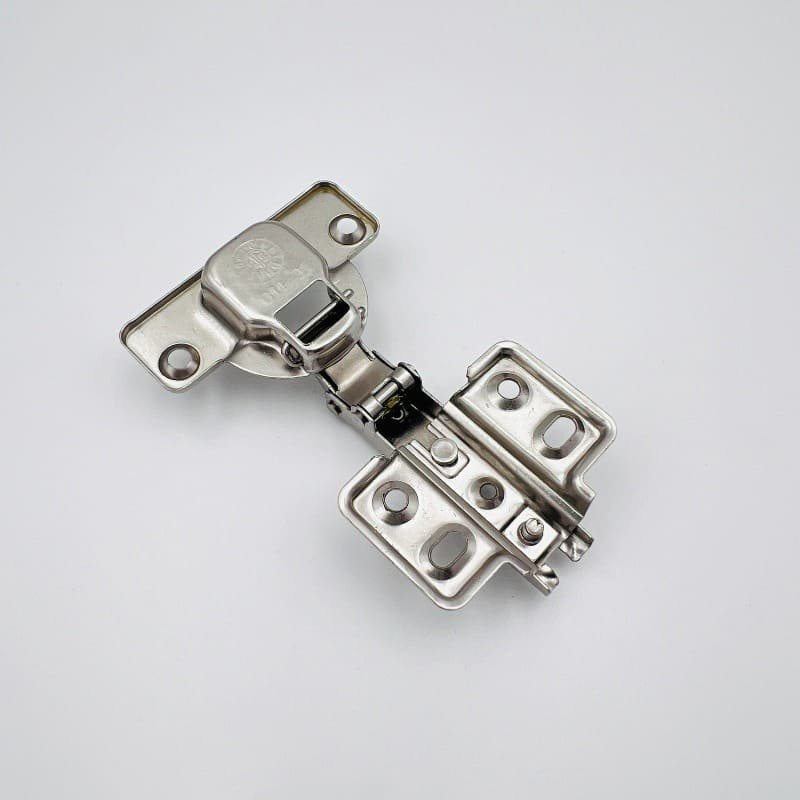

8mm Cup Depth Thin Door Cabinet Hinge 35mm Non Soft Close 2 Way Slide On Model 1107 for Doors from 10mm
Industry-leading 8mm extra shallow cup for ultra-thin doors from 10mm
- Model Number: 1107
- Cup Drilling Depth: 8 mm

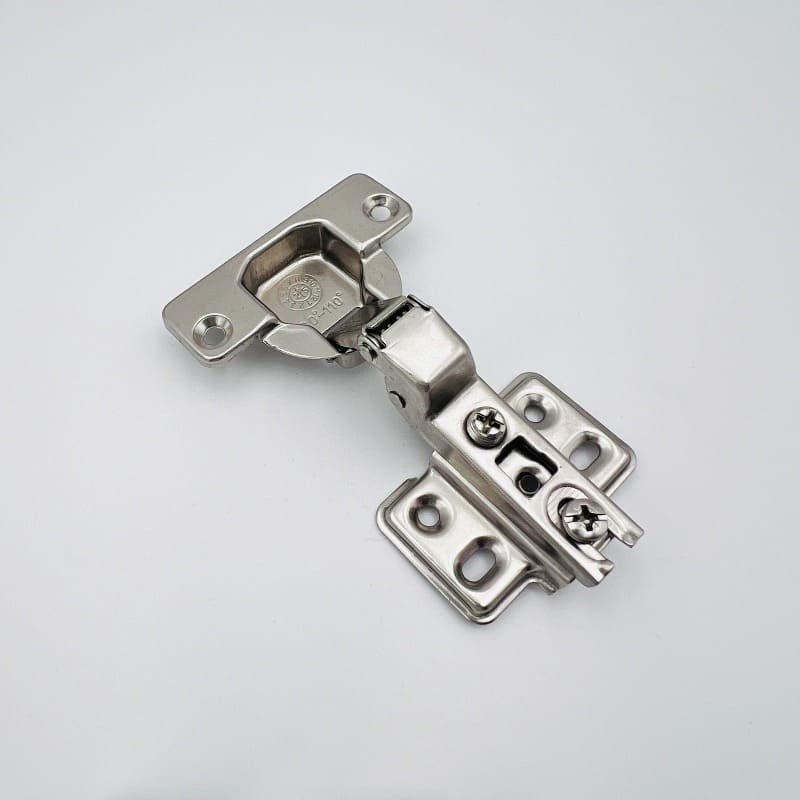

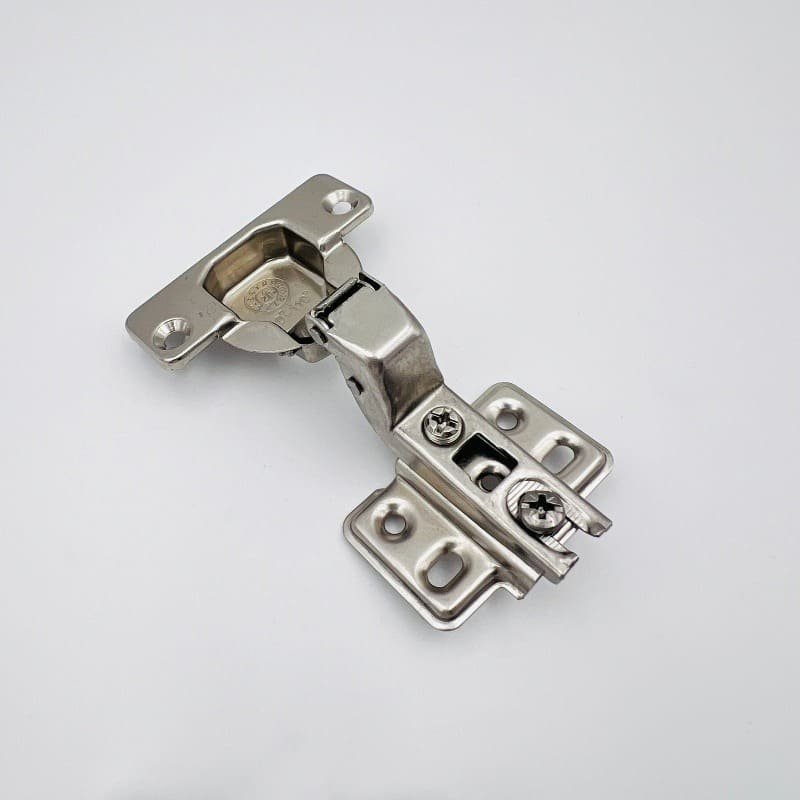

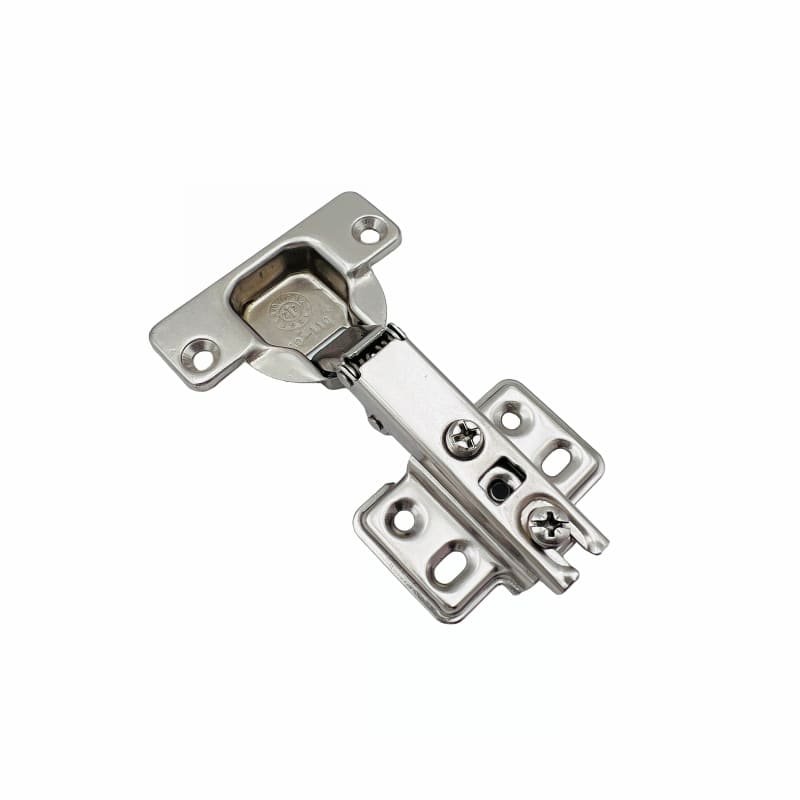

- Cover Option: Full Overlay, Half Overlay, Insert
- Area of application: For thin doors from 10 mm
- Material: Cold-Rolled Steel (Nickel Plated)
- Cycle Test: Pass 20 000 times
- Salt Spray: 24 H
- Availability: Factory direct wholesale, OEM/ODM supported.
- Cooperation Term: FOB
- Shipping Port: Shantou/Shenzhen, China
- Country of Origin: China
- HS Code: 83021000
- MOQ: 10 000 pcs
- Production Time: 30 Days
Description
Product Overview: HONGYI Model 1107 – Ultra-Shallow 8mm Cup for Doors from 10mm
The HONGYI Model 1107 represents the shallowest cup depth in our hinge range – an industry-leading 8mm extra shallow cup designed specifically for ultra-thin doors from 10mm to 14mm. This hinge solves the challenge of installing concealed hinges on very thin panels where standard 11.5mm or even 9.5mm cups would drill through or compromise door integrity.
The Challenge with Ultra-Thin Doors:
Modern furniture design increasingly uses 10-12mm thin doors for minimalist aesthetics, weight reduction, and cost savings. However, standard cabinet hinges have cup depths of 11.5mm or more – which would completely drill through a 10mm door or leave insufficient material thickness, causing structural failure. Even 9.5mm shallow cup hinges (like our Model 1113) are designed for 12-16mm doors, leaving only 0.5mm on a 10mm door – still risky.
The Solution: Model 1107 8mm Cup
With its ultra-shallow 8mm cup depth, the Model 1107 is specifically engineered for doors as thin as 10mm. When properly installed with 8.5-9mm drilling depth, it leaves 1-2mm of material thickness – enough for structural integrity while maintaining a perfectly smooth door exterior. This makes it the ideal choice for ultra-thin panel applications where no other concealed hinge will work.

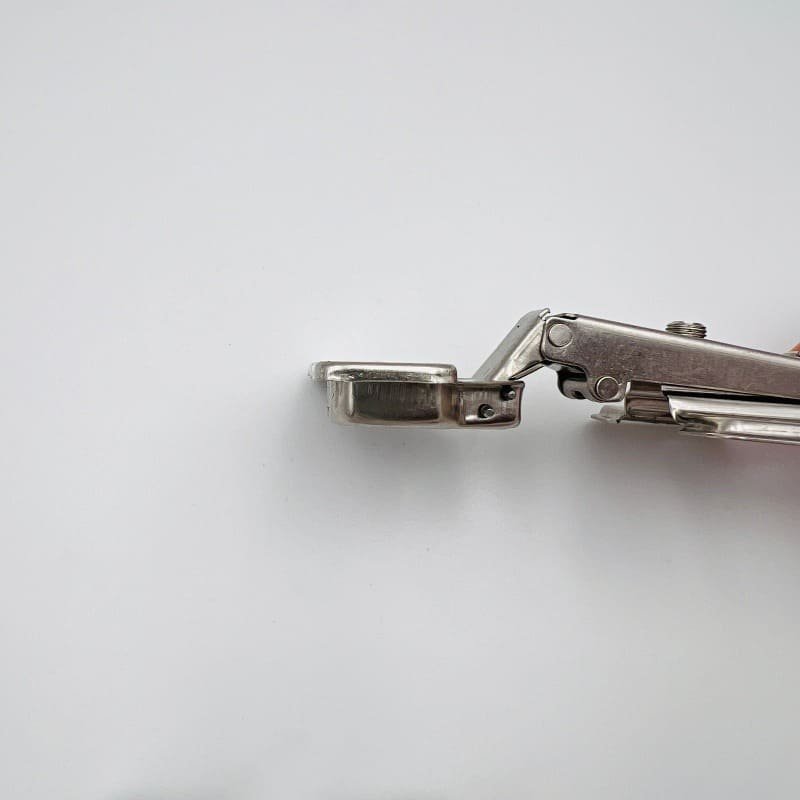

Cup Depth Comparison: Why 8mm Matters
| Door Thickness | Standard Hinge (11.5mm cup) | Model 1113 (9.5mm cup) | Model 1107 (8mm cup) |
|---|---|---|---|
| 10mm door | ❌ Drills through completely (11.5mm > 10mm) | ⚠️ Risky – only 0.5mm left (9.5mm cup) | ✅ Safe – 2mm material left (8mm cup) |
| 11mm door | ❌ Drills through (11.5mm > 11mm) | ⚠️ Minimal – 1.5mm left | ✅ Safe – 3mm left |
| 12mm door | ❌ Drills through (11.5mm > 12mm? No – 11.5mm < 12mm) | ✅ Acceptable – 2.5mm left | ✅ Safe – 4mm left |
| 14mm door | ⚠️ Minimal – 2.5mm left | ✅ Safe – 4.5mm left | ✅ Very safe – 6mm left |
| 16mm door | ✅ Acceptable – 4.5mm left | ✅ Safe – 6.5mm left | ✅ Safe – 8mm left |
Recommendation: Model 1107 is the only safe choice for 10-11mm doors. For 12-14mm doors, it provides extra safety margin. For 15mm+ doors, our standard Model 1101 or Model 1113 are more economical options.
Applications for Ultra-Thin Doors (10-14mm)
🏠 Minimalist Furniture
Contemporary designs often specify 10-12mm doors for clean, lightweight aesthetics. Model 1107 makes this possible with concealed hinges.
🚐 RV & Marine Cabinets
Weight savings are critical in vehicles and boats. Thin doors with 8mm cup hinges reduce overall weight while maintaining functionality.
📦 Flat-Pack Furniture
Ready-to-assemble furniture uses thin panels for shipping efficiency. Model 1107 ensures proper hinge installation in customer homes.
🏨 Budget Hotel Furniture
Cost-effective hotel projects often use thin doors. Model 1107 provides reliable hinge function without drill-through issues.
🖼️ Display Cabinets
Lightweight display doors are easier to open and close. Ultra-thin panels with proper hinges create elegant retail displays.
🎨 Decorative Panels
Thin decorative doors in cabinetry need specialized hinges that won’t compromise appearance.
Technical Specifications
| Model Number | HONGYI 1107 |
|---|---|
| Hinge Type | Standard 2-Way Hinge (Non-Soft Close) |
| Special Feature | 8mm Ultra-Shallow Cup – For Doors from 10mm |
| Cup Diameter | 35mm (Industry Standard) |
| Cup Depth | 8mm (Extra Shallow – our shallowest) |
| Recommended Door Thickness | 10-14mm (can be used up to 16mm) |
| Minimum Door Thickness | 10mm (with proper 8.5-9mm drilling depth) |
| Installation Type | Slide-On (arm slides onto mounting plate) |
| Opening Angle | 100° |
| Material | Cold-Rolled Steel |
| Hinge Arm Thickness | 0.8mm |
| Hinge Cup Thickness | 0.6mm |
| Surface Finish | Nickel Plated (Zinc available on request) |
| Drilling pattern | 48/6 |
| Mounting Plate | 4 holes |
| Salt Spray Test | 24 hours (basic corrosion protection) |
| Cycle Test | 20,000 cycles |
Installation Guide for 10mm Ultra-Thin Doors
⚠️ Critical: Drilling depth must be adjusted for 8mm cup hinges!
- Drilling depth: Set your 35mm Forstner bit to drill 8.5-9mm deep (NOT the standard 12mm used for regular hinges)
- Test first: Always test on a scrap piece of your actual door material to verify depth
- Door edge distance: Standard 3-5mm from door edge (depending on overlay requirement)
- Mounting plate: Use standard mounting plates at cabinet side
- Arm attachment: Simply slide hinge arm onto mounting plate – no tools needed
- Adjustment: Use 3D adjustment screws to fine-tune door alignment
⚠️ Warning: Drilling too deep (>9mm) on a 10mm door will weaken or penetrate the door surface. Drilling too shallow (<8mm) will prevent the hinge cup from seating properly. Precise depth control is essential.
Quality & Testing
- 20,000 cycles open-close test: Equivalent to approximately 10 years of household use
- 24-hour salt spray test: Basic corrosion resistance for indoor applications
- Load test: 2.5kg per hinge (sufficient for lightweight thin doors)
- Material thickness: Consistent 0.8mm arm, 0.6mm cup
- 100% visual inspection: Before packaging
Batch test reports available upon request. Pre-shipment inspection welcomed.
Specifications
| Model NO. | 1107 |
| Product Name | Extra Shallow Cabinet Hinge 8mm Cup Depth 35mm – Non Soft Close Slide On Model 1107 for Thin Doors 10-14mm |
| Material | Cold-Rolled Steel |
| Opening Angle | 100° |
| Hinge Cup Diameter | 35 mm |
| Hinge Cup Depth | 8 mm |
| Hole Distance | 48 mm |
| Door Thickness | 10-14mm |
| Base Plate | H=0 Four-Holes | Wood-screw Hole |
| Closing Mechanism | NO Soft Close |
| For door material | Wood |
| Overlay Options | Full Overlay / Half Overlay / Insert |
| Finish | Nickel Plated (Rust Resistant) |
| Installation Type | Slide on |
| Country of Origin | China |
| HS Code | 83021000 |
| Production Time | 30 Days |
FAQ
❓ FREQUENTLY ASKED QUESTIONS – MODEL 1107 8MM ULTRA-SHALLOW CUP HINGE
Common questions from furniture manufacturers, distributors, and importers about our 8mm cup depth hinge for doors from 10mm.
Q: Can this hinge really be used on 10mm thin doors? Will it drill through?
A: Yes, the Model 1107 is specifically engineered for 10mm doors. With its 8mm ultra-shallow cup depth, when properly installed with 8.5-9mm drilling depth, it leaves 1-2mm of material thickness—enough for structural integrity while maintaining a perfectly smooth door exterior. This is the shallowest cup depth available in standard concealed hinges, making it the only safe choice for 10-11mm doors.
Keywords: 10mm door hinge, 8mm cup depth, prevent drill-through, ultra-thin door
Q: What door thickness range is Model 1107 suitable for?
A: Model 1107 is designed for door thicknesses from 10mm to 14mm. This covers ultra-thin applications including minimalist furniture, RV cabinets, flat-pack furniture, and lightweight displays. It can also be used on 15-16mm doors with extra safety margin, though for 15mm+ doors our standard Model 1101 (11.5mm cup) or Model 1113 (9.5mm cup) are more economical options. The key advantage of Model 1107 is enabling 10-11mm ultra-thin doors where no other standard concealed hinge can work safely.
Keywords: door thickness range, 10-14mm panels, ultra-thin doors
Q: What drilling depth should I use for 10mm doors with this 8mm cup hinge?
A: Critical: Drilling depth must be adjusted to 8.5-9mm—NOT the standard 12mm used for regular hinges. Here are recommended drilling depths by door thickness:
- For 10mm doors: Drill 8.5-9mm deep (leaves 1-1.5mm material)
- For 11mm doors: Drill 9-9.5mm deep (leaves 1.5-2mm material)
- For 12-14mm doors: Drill 9.5-10mm deep (leaves 2-4.5mm material)
⚠️ Warning: Drilling too deep (>9.5mm on a 10mm door) will weaken or penetrate the door surface. Drilling too shallow (<8mm) will prevent the hinge cup from seating properly. Always test on a scrap piece of your actual door material before production.
Keywords: drilling depth, 8.5mm depth, 35mm Forstner bit, installation guide
Q: How does the 8mm cup depth compare to standard hinges? Why is it better for thin doors?
A: Here’s the critical comparison for thin door applications:
| Hinge Type | Cup Depth | On 10mm Door | On 11mm Door | On 12mm Door |
|---|---|---|---|---|
| Model 1107 | 8mm | ✅ 2mm left – SAFE | ✅ 3mm left – SAFE | ✅ 4mm left – SAFE |
| Model 1113 | 9.5mm | ⚠️ 0.5mm left – RISKY | ✅ 1.5mm left – Acceptable | ✅ 2.5mm left – Safe |
| Standard Hinge | 11.5mm | ❌ Drills through | ❌ Drills through | ✅ 0.5mm left – Minimal |
The 8mm cup depth provides 2mm of remaining material on 10mm doors—the industry standard minimum for structural integrity. This makes Model 1107 the only safe choice for ultra-thin doors. [citation:1]
Keywords: cup depth comparison, 8mm vs 9.5mm vs 11.5mm, remaining material thickness
Q: What are the minimum gap requirements when using Model 1107 on thin doors?
A: Based on industry standards for 8mm cup depth hinges, here are the minimum gap requirements:
| Door Thickness | Distance to Cup (E=3mm) | Distance to Cup (E=4mm) | Distance to Cup (E=5mm) | Distance to Cup (E=6mm) |
|---|---|---|---|---|
| 10mm | 0.2mm | 0.2mm | 0.1mm | 0.1mm |
| 11mm | 0.3mm | 0.3mm | 0.3mm | 0.2mm |
| 12mm | 0.4mm | 0.4mm | 0.4mm | 0.4mm |
| 13mm | 0.6mm | 0.6mm | 0.6mm | 0.5mm |
| 14mm | 0.8mm | 0.8mm | 0.8mm | 0.7mm |
These values assume factory settings and proper installation. Always test on your specific door material.
Keywords: minimum gap, door clearance, installation spacing
Q: What are the typical applications for this 8mm cup depth hinge?
A: Model 1107 is widely used in applications requiring ultra-thin doors (10-14mm):
- 🏠 Minimalist Furniture: Contemporary designs with clean, lightweight aesthetics using 10-12mm doors
- 🚐 RV & Marine Cabinets: Weight-saving applications in recreational vehicles and boats
- 📦 Flat-Pack Furniture: Ready-to-assemble furniture using thin panels for shipping efficiency
- 🏨 Hotel Furniture: Budget-conscious hotel projects where thin doors reduce material costs
- 🖼️ Display Cabinets: Lightweight doors for retail displays and exhibitions
- 🎨 Decorative Panels: Thin decorative doors in cabinetry that need concealed hinges
- 🏘️ Affordable Housing: Cost-effective housing projects using thin panel construction
Keywords: thin door applications, minimalist furniture, RV cabinets, flat-pack furniture
Q: What quality testing does Model 1107 undergo? Is it reliable for commercial use?
A: Despite being an ultra-shallow hinge, Model 1107 maintains our standard quality control:
- 20,000 cycles open-close test: Equivalent to approximately 10 years of household use
- 24-hour salt spray test: Basic corrosion resistance for indoor applications
- Load test: 2.5kg per hinge (sufficient for lightweight thin doors)
- Material thickness: 0.8mm hinge arm, 0.6mm cup
- 100% visual inspection: Before packaging
Keywords: 30,000 cycles test, quality control, batch test reports, hinge durability
Q: Can I get samples of Model 1107 to test on my 10mm doors?
A: Absolutely—sample testing is strongly recommended especially for ultra-thin door applications where drilling depth and fit are critical. Our sample policy:
- Free samples: 2-5 pieces per model (you pay shipping)
- Shipping: DHL/FedEx/UPS delivery in 3-5 days
- Sample production time: In stock, ships within 24 hours
- Customized samples: For OEM inquiries, sample production takes 5-7 days
We strongly encourage you to test Model 1107 on your actual 10mm door panels with the recommended 8.5-9mm drilling depth to verify fit and performance before committing to bulk orders.
Keywords: free samples, sample testing, test on 10mm doors, verify fit
Q: What are the MOQ and pricing for Model 1107?
A: As a factory-direct supplier, we offer competitive pricing with tiered discounts:
- Sample order: 2-50 pcs for testing
- Wholesale quantity: >10,000 pcs
- Volume discount: >20,000 pcs
- Container pricing: 50,000+ pcs / full container
Price includes: Standard nickel finish, standard export packaging. Custom packaging and OEM branding available from 20,000+ pcs. Contact our sales team with your estimated annual volume for a customized quotation.
Keywords: MOQ 500 pcs, factory-direct pricing, tiered discounts, container pricing
Q: Can I mix Model 1107 with other hinge models in one container?
A: Yes, mixed containers are welcome and encouraged. Many buyers combine:
- Model 1107 (8mm ultra-shallow cup) for 10-14mm ultra-thin doors
- Model 1113 (9.5mm shallow cup) for 12-16mm thin doors
- Model 1101 (11.5mm standard cup) for regular applications
- Model 1450 (2-way hydraulic soft close) for premium projects
- Mounting plates and accessories
This allows you to reach higher volume discount tiers across your entire order while getting exactly the hinges you need for different door thicknesses. Our logistics team optimizes container loading regardless of the mix.
Keywords: mixed container, combine different models, volume discount, container loading
Q: How is Model 1107 packaged for export? How many pieces fit in a container?
A: Our standard export packaging is optimized for protection and maximum container utilization:
- Inner bag: 300 pcs per large transparent bag (heavy-duty PE with anti-rust protection)
- Master carton: 300 pcs per carton (43×28.5×22 cm, ~12.5.0 kg)
- 20ft container: Approximately 300,000 pcs (1,000 master cartons)
Custom packaging options: Branded boxes, blister packaging, custom printing available based on MOQ.
Keywords: export packaging, container capacity
Q: Do you offer OEM/custom branding on Model 1107?
A: Yes, full OEM services are available. Many hardware brands and large furniture manufacturers private label this ultra-shallow hinge for their thin door product lines. Options include:
- Custom packaging: Branded boxes with your design (MOQ: 20,000 pcs)
- Laser engraving: Your logo on the hinge cup (MOQ: 20,000 pcs)
- Custom finish: Non-standard colors and plating (MOQ: 100,000 pcs)
- Blister cards: Retail-ready packaging for DIY market (MOQ: 10,000 pcs)
- Custom barcodes: Your SKU numbers and barcodes on packaging
Send us your artwork or requirements—we create samples for approval before mass production.
Keywords: OEM services, private label, custom branding, laser engraving
Q: What documentation do you provide for export shipments?
A: For all export orders, we provide complete documentation:
- Commercial invoice
- Packing list (detailed by carton)
- Bill of lading (original or telex release)
- Certificate of Origin (CO)
- Form E (for shipments to certain countries with trade agreements)
- Inspection reports (if third-party inspection was conducted)
We have extensive experience shipping to EU countries, South America, Middle East, and Africa and understand the documentation requirements for each market.
Keywords: export documentation, certificate of origin, Form E, shipping documents
Q: What is your warranty and after-sales support policy?
A: We stand behind Model 1107 with clear policies:
- 1-year warranty against manufacturing defects
- Replacement or credit for defective pieces (pro-rated based on quantity)
- 24-hour response time to quality inquiries
- Batch sample retention: We keep samples from every production run for 2 years
- Technical support: Installation advice and troubleshooting available via email/WhatsApp
Our goal is long-term partnership, not one-time sales. Many of our thin door hinge customers have been with us for 5+ years.
Keywords: warranty, after-sales support, replacement policy, technical support
Packaging & Shipping
Customizable for OEM Orders
- Bulk Poly-bag: Put 300 pcs into a big poly-bag
- Master Carton: 300 pcs/carton
- Carton Size: 43*28.5*22 CM
- GW/NW: 12.5KG / 12KG
- Port of Loading: Shantou/Shenzhen/Guangzhou, China
- Custom Packaging: Available (Branded boxes, polybags, etc.)
