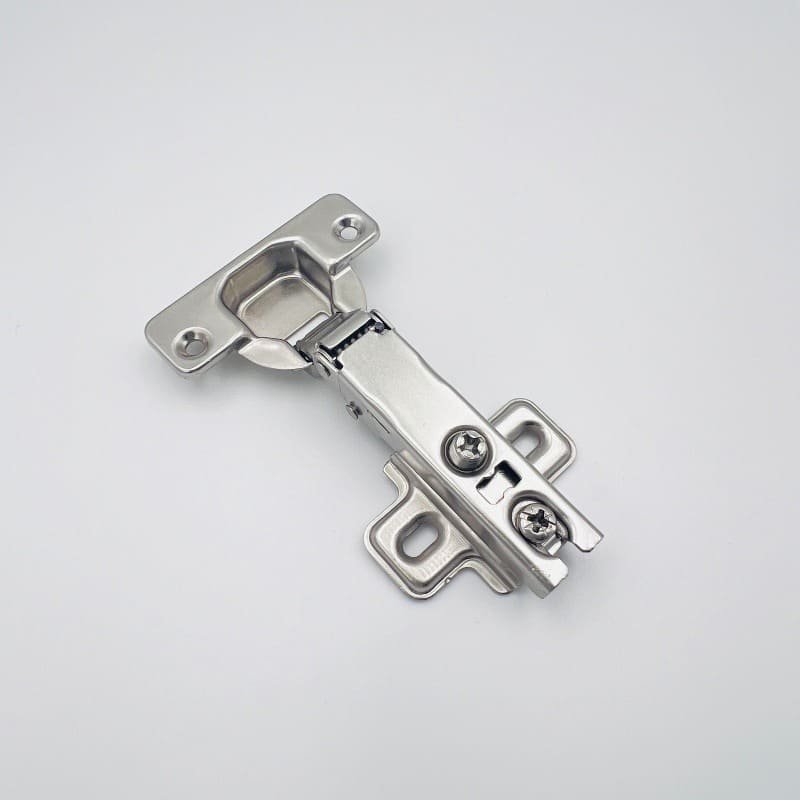

Small Angle Soft Close Hinge 8.5mm Shallow Cup 35mm Slide On Model 1417 for Thin Doors 12-16mm

Q: What is the minimum door thickness for Model 1417? Can it be used on 10mm or 11mm doors?

A: Model 1417 is engineered for door thicknesses from 12mm to 16mm. 12mm is the minimum recommended thickness. Here’s the technical explanation:

• Cup depth: 8.5mm
• Recommended drilling depth: 9-9.5mm
• On a 12mm door: With 9mm drilling depth, you maintain 3mm of remaining material – sufficient for structural integrity
• On an 11mm door: Would leave only 1.5-2mm – insufficient for safe long-term use with soft close mechanism

For doors thinner than 12mm, we recommend our Model 1107 (8mm cup, non-soft close) or Model 1113 (9.5mm cup, non-soft close). Model 1417 is specifically optimized for the 12-16mm range where soft close is desired.

Keywords: minimum door thickness, 12mm door hinge, 8.5mm cup depth, thin door soft close hinge

Q: What are the material specifications? Is this hinge strong enough for daily use?

A: Model 1417 features robust construction with specific material thicknesses designed for durability:

Despite being designed for thin doors, the 0.9mm body thickness matches our standard-duty hinges – no compromise on strength. The hinge undergoes 30,000 cycle testing (10+ years equivalent) and 24-hour salt spray testing for corrosion resistance.

Keywords: hinge material thickness, 0.9mm hinge body, 60g hinge weight, durability test

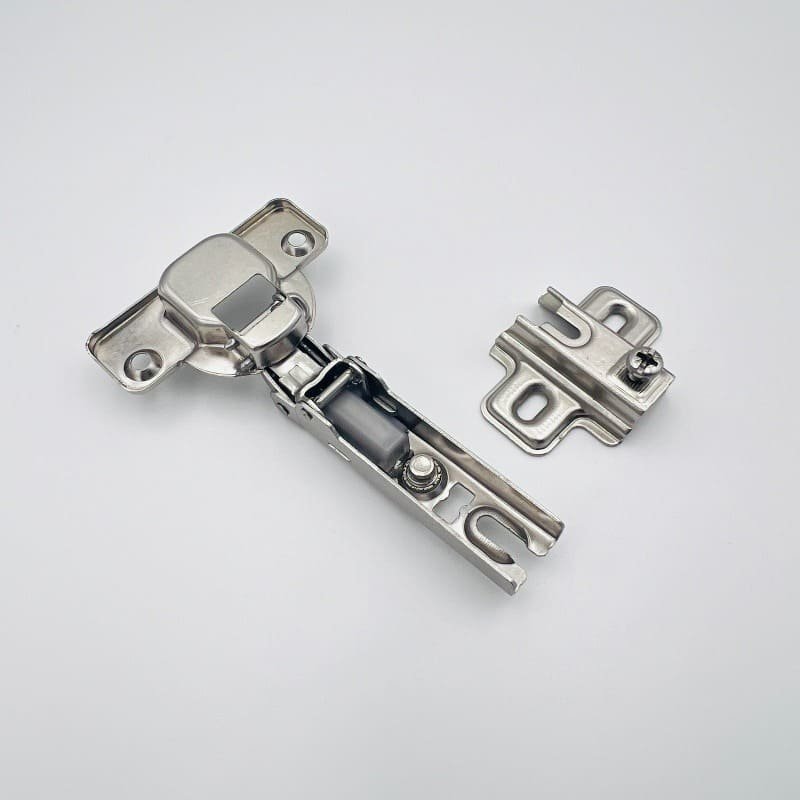

Q: What exactly is “small angle buffering”? How is it different from standard soft close?

A: Small angle buffering (also called 2-way hydraulic or full-range damping) means the soft close mechanism activates regardless of how far the door is opened.

Standard soft close hinges (1-way hydraulic) only engage in the final 15° of closure. If a door is only opened 30° (common for cabinets near walls or appliances), it will slam shut because the mechanism never engages.

Model 1417’s small angle buffering:

• Activates from any angle: Hydraulic resistance begins as soon as you start closing the door – whether it’s opened 30°, 45°, 90°, or fully open at 100°
• 2-way hydraulic mechanism: Provides consistent damping force throughout the entire closing arc
• Perfect for: Wall cabinets next to refrigerators, bathroom vanities, corner cabinets, and any space-constrained installation

This technology is especially valuable for thin doors where standard soft close might not engage before the door gains momentum.

Keywords: small angle buffering, 2-way hydraulic hinge, full range damping, soft close from any angle

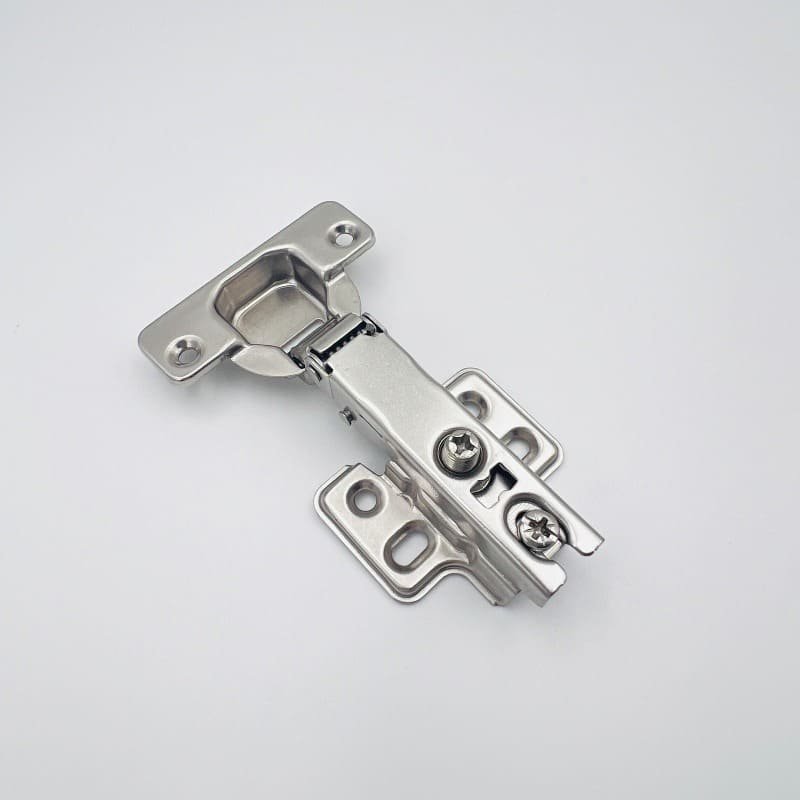

Q: What’s the difference between the 2-hole and 4-hole mounting plates? Which should I choose?

A: Model 1417 offers both 2-hole and 4-hole mounting plate options to suit different installation needs:

Both plates are EU standard 45x45mm and fully compatible with standard cabinet construction. You can mix both types in one container based on your project needs.

Keywords: 2 hole mounting plate, 4 hole mounting plate, pre-assembled euro screws, hinge plate options

Q: What drilling depth should I use for different door thicknesses?

A: Precise drilling depth is critical for thin door installations. Here are our recommendations:

⚠️ Important notes:

• Always use a sharp 35mm Forstner bit for clean holes
• Test on scrap material before production runs
• Drilling too deep (>10mm on 12mm door) risks weakening or penetrating the door surface
• Drilling too shallow (<8.5mm) prevents the hinge cup from seating properly

Keywords: drilling depth, 9mm drilling depth, 35mm Forstner bit, thin door installation guide

Q: How much does each hinge weigh? What are the container loading capacities?

A: Model 1417 weighs 60 grams per piece. Here are the complete packaging specifications:

• Individual weight: 60 grams
• Inner bag: 200 pcs per large transparent bag (anti-rust protection)
• Master carton: 200 pcs per carton
• Carton dimensions: 38 × 25 × 18 cm
• Carton gross weight:  12.5 kg
• 20ft container: Approximately 280,000 pcs

The lightweight 60g design means more pieces per container – maximizing your shipping efficiency. Mixed containers with other hinge models are welcome.

Keywords: hinge weight 60 grams, container capacity 280000 pieces, export packaging, shipping weight

Q: How does this 8.5mm cup hinge compare to standard 11.5mm soft close hinges?

A: Here’s a direct comparison to help you understand the difference:

Choose Model 1417 for thin doors (12-16mm) where standard hinges won’t fit safely. Choose standard 11.5mm hinges for doors 15mm and above where thinness isn’t required.

Keywords: 8.5mm vs 11.5mm cup, thin door hinge comparison, soft close hinge comparison

Q: Is this a slide-on or clip-on hinge? How does installation work?

A: Model 1417 uses slide-on installation – a simple, reliable method for attaching the door:

Slide-on installation steps:

1. Mounting plate: Attach the 2-hole or 4-hole plate to cabinet side using screws
2. Hinge on door: Insert hinge cup into drilled hole and secure with screws
3. Slide to attach: Simply slide the hinge arm horizontally onto the mounting plate until it clicks into position
4. To remove: Slide the arm off the plate – no tools required

Advantages of slide-on:

• Tool-free: No screws or tools needed for door attachment/removal
• Secure: Once slid into place, the arm stays firmly locked
• Simple: No complicated mechanisms to learn – intuitive for production line workers
• Durable: Fewer moving parts than clip-on designs

This is the same installation method used by millions of cabinets worldwide – your production team will be familiar with it.

Keywords: slide on hinge installation, tool-free hinge, how to install slide on hinge, hinge attachment methods

Q: What is the weight capacity of Model 1417? Can it handle heavy thin doors?

A: Model 1417 has a standard load rating suitable for most thin door applications:

• Load capacity: 3-4 kg per hinge (standard for 35mm cup hinges)
• For a standard cabinet with 2 hinges: Supports 6-8 kg total door weight
• For wider doors with 4 hinges: Supports 9-12 kg total door weight

Important considerations for thin doors:

• Thin doors are typically lighter than solid wood doors – the weight capacity is usually sufficient
• The 0.9mm body thickness provides the same strength as our standard hinges
• For unusually heavy thin doors (glass, metal-faced, etc.), consider using 3 hinges instead of 2
• The limiting factor is often the door material itself, not the hinge

If you have specific weight requirements, please provide details and we can recommend the appropriate configuration.

Keywords: hinge weight capacity, load rating, 3kg per hinge, thin door hinge strength

Q: What quality testing does Model 1417 undergo? Can you provide test reports?

A: Model 1417 undergoes comprehensive testing to ensure reliability and durability:

• Cycle testing: 30,000 open-close cycles (equivalent to 15+ years of household use)
• Salt spray testing: 24 hours corrosion resistance (nickel-plated finish)
• Hydraulic mechanism testing: Each cartridge tested for consistent damping force
• Load testing: 3-4 kg static load capacity verified
• Material thickness verification: 0.9mm body, 0.6mm cup confirmed
• 100% visual inspection: Every hinge checked before packaging

Documentation available:

• Batch test reports upon request
• Third-party inspection welcome (SGS, BV, etc.)
• Pre-shipment samples retained from each production run

Keywords: 30000 cycle test, 24 hour salt spray, hinge quality certification, test reports

Q: Can I get samples to test on my 12mm doors before placing a bulk order?

A: Yes, sample testing is strongly recommended – especially for thin door applications where drilling depth and fit are critical.

• Free samples: 2-5 pieces per model (you pay shipping)
• Shipping: DHL/FedEx/UPS delivery in 3-5 business days worldwide
• Sample cost for larger quantities: If you need 20+ pieces for production testing, we charge cost price (deducted from first bulk order)
• Sample production time: In-stock items ship within 24 hours

When requesting samples, please specify:

• Your door thickness (12mm, 13mm, 14mm, etc.)
• Preferred mounting plate (2-hole with pre-assembled screws or 4-hole)
• Any specific testing requirements

We encourage you to test the small angle buffering function at 30°-45° openings to verify performance in your specific application.

Keywords: free samples, thin door hinge samples, test before bulk order, sample testing policy

Q: What are the MOQ and pricing for Model 1417? How do volume discounts work?

A: As a factory-direct supplier, we offer tiered pricing based on quantity:

• Sample quantity: 2-50 pcs (for testing)
• Small trial order: 500-2,000 pcs
• Wholesale quantity: 0,000 pcs (better pricing)
• Volume discount: 50,000 pcs (significant savings)
• Container pricing: full container (best value)

Price includes:

• Hinge with your choice of 2-hole or 4-hole mounting plates (specify preference)
• Mounting screws included
• Standard export packaging

Mixed containers: You can combine Model 1417 with other hinge models (non-soft close, different cup depths, etc.) in one container – total volume counts toward discount tiers.

Keywords: factory direct pricing, volume discounts, mixed container pricing

Q: Tell me more about the “pre-assembled euro screws” on the 2-hole plate. How does this save time?

A: The 2-hole mounting plate with pre-assembled euro screws is designed for production efficiency:

What it is: Two euro screws are already threaded into the mounting plate when you receive it. They’re partially inserted but not tightened – ready for immediate driving into the cabinet side.

Time savings:

• No screw handling: Workers don’t need to pick up, position, and start separate screws
• No screw loss: Screws won’t get lost on the production floor
• Faster positioning: The plate stays aligned with screws partially inserted – just position and drive
• Estimated savings: 5-10 seconds per plate – significant on high-volume production lines

How to use:

1. Position the plate on cabinet side at correct location
2. Drive the two pre-assembled screws with a power screwdriver
3. Done – plate is installed in seconds

This feature is especially valuable for furniture manufacturers producing large quantities of cabinets where every second of labor matters.

Keywords: pre-assembled euro screws, quick installation plate, time saving hinge, production efficiency

Q: What are the ideal applications for this 8.5mm shallow cup soft close hinge?

A: Model 1417 is specifically designed for thin door applications requiring premium soft close functionality:

• Modern minimalist furniture: Contemporary designs often use 12-15mm doors for clean, lightweight aesthetics
• Kitchen wall cabinets: Located next to refrigerators or walls where opening angle is limited – small angle buffering ensures silent closing
• Bathroom vanities: Space-constrained bathrooms benefit from doors that close softly even when partially opened
• Corner cabinets: Difficult access areas where doors can’t fully open – small angle damping prevents slamming
• RV and marine cabinets: Lightweight thin doors with premium soft close – 60g hinge weight supports weight savings
• Display cabinets: Thin glass-fronted doors that need silent operation
• Hotel furniture: Guest room cabinets that benefit from soft close but use thinner panels for cost savings

The combination of 8.5mm shallow cup + small angle buffering makes this hinge unique – solving both the thin panel challenge and the space-constrained installation challenge simultaneously.

Keywords: thin door applications, minimalist furniture hinges, space saving cabinets, RV cabinet hinges

Q: How does Model 1417 compare to your other thin door hinges (1107, 1113)?

A: Here’s a complete comparison of our thin door hinge family to help you choose:

Recommendation guide:

• Choose Model 1417 for thin doors (12-16mm) that require soft close with small angle buffering
• Choose Model 1107 for ultra-thin doors (10-11mm) without soft close needs
• Choose Model 1113 for thin doors (12-16mm) without soft close (more economical)

Keywords: hinge comparison, Model 1417 vs 1107, thin door hinge selection, which hinge to choose

Q: Do you offer OEM/custom branding on Model 1417?

A: Yes, we offer full OEM services for Model 1417. Many furniture manufacturers and hardware distributors private label this hinge for their product lines.

• Custom packaging: Branded boxes with your design, logo, and local language text (MOQ: 20,000 pcs)
• Custom printing on bags: Your brand on the transparent inner bags (MOQ: 10,000 pcs)
• Laser engraving: Your logo on the hinge cup (MOQ: 20,000 pcs)
• Custom barcodes: Your SKU numbers and barcodes on packaging
• Master carton printing: Your brand on outer cartons (MOQ: 10,000 pcs)
• Custom plate configuration: We can adjust based on your specific requirements

Send us your artwork or requirements – we create samples for approval before mass production. This helps you build your local brand while sourcing quality thin door soft close hinges from our factory.

Keywords: OEM thin door hinge, private label soft close hinge, custom branding, hinge packaging customization

Q: What documentation do you provide for export shipments?

A: We provide complete export documentation for all shipments:

• Commercial invoice (with detailed product description and values)
• Packing list (detailed by carton with weights and dimensions)
• Bill of lading (original or telex release)
• Certificate of Origin (CO)
• Form E (for shipments to certain countries with trade agreements)
• Inspection reports (if third-party inspection conducted)
• Material specifications (upon request)
• Test reports (batch test results available)

We have extensive experience shipping to Europe, South America, Middle East, Africa, and Asia and understand the documentation requirements for each market.

Keywords: export documentation, certificate of origin, shipping documents, hinge export

Q: What is your warranty and after-sales support policy?

A: We stand behind Model 1417 with clear policies and responsive support:

• 1-year warranty against manufacturing defects
• Replacement or credit for defective pieces (pro-rated based on quantity)
• 24-hour response time to quality inquiries via email or WhatsApp
• Batch sample retention: We keep samples from every production run for 2 years
• Technical support: Installation advice and troubleshooting available
• Video support: We can provide installation videos for your production team

Our goal is long-term partnership, not one-time sales. We’ve supplied hinges to the same customers for 10+ years – your success in your local market is our success.

Keywords: hinge warranty, after-sales support, replacement policy, technical support
