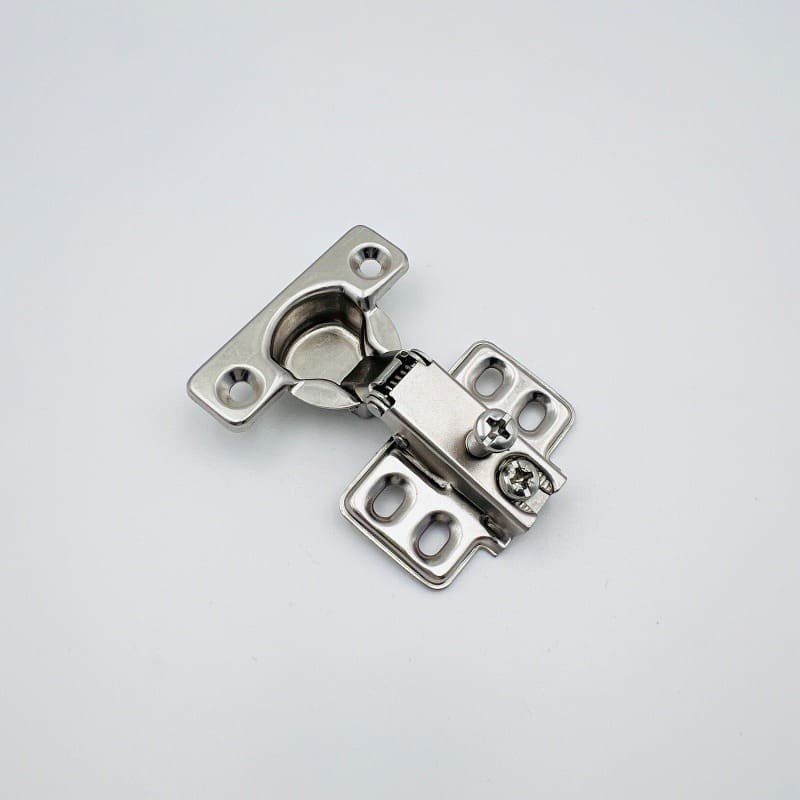

Short Arm Cabinet Hinge 26mm Cup One-Way No Soft Close Model 1302 for Small Cabinets, Display Cases & Narrow Frame Furniture

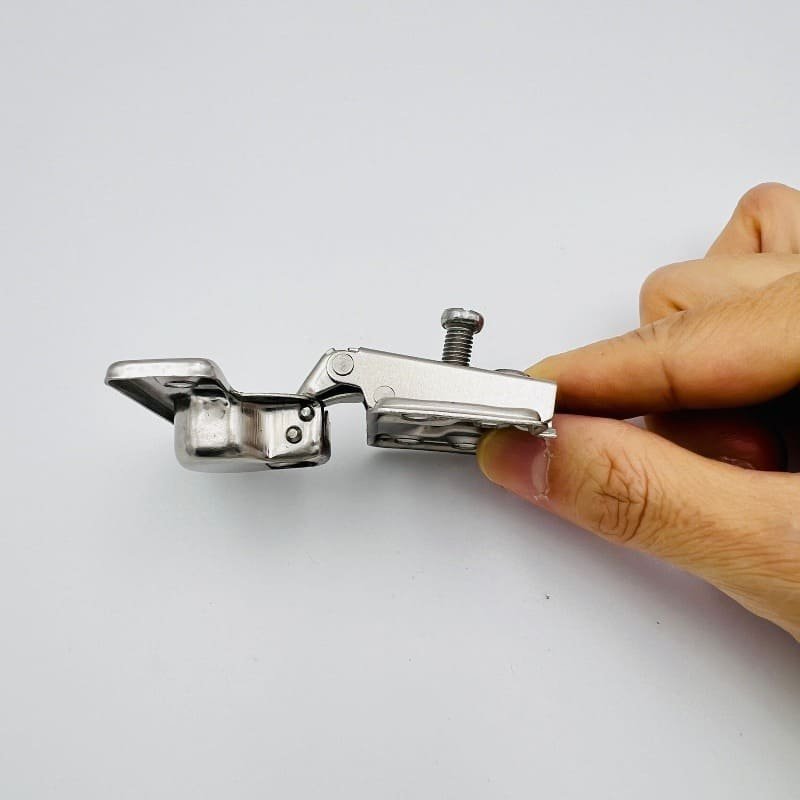

Q: What is the difference between a “short arm” hinge and a standard hinge? Why would I need it?

A: A short arm hinge has a smaller distance from the cup center to the mounting plate edge compared to standard hinges. This design is specifically engineered for:

• Narrow door frames: When cabinet door frames are under 40mm wide, standard hinge arms may protrude beyond the frame or cause interference [citation:1]
• Space-constrained interiors: Short arm design provides more clearance inside shallow cabinets, making it ideal for corner units and small furniture
• Back-to-back applications: When two doors share a common divider wall, short arms prevent hinge interference

Model 1302’s short arm allows you to install concealed hinges on narrow frame furniture where standard 35mm hinges simply cannot fit.

Keywords: short arm hinge vs standard, narrow frame hinge, space-saving hinge design

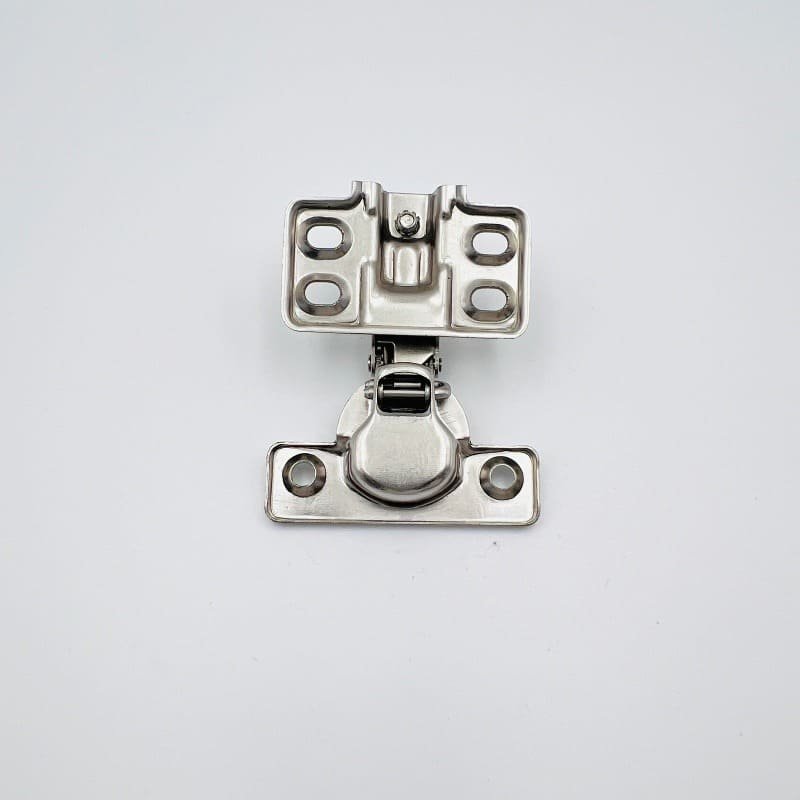

Q: Why choose a 26mm mini cup hinge over the industry standard 35mm?

A: The 26mm mini cup is specifically designed for doors with narrow stiles or smaller door sizes. Key advantages include:

• Fits narrow frames: Works on door frames as narrow as 35-40mm where 35mm cups would be too large
• Less material removal: The smaller cup removes less wood from the door, maintaining structural integrity in thin/narrow frames
• Aesthetic proportion: Visually better suited for small cabinets, jewelry boxes, and miniature furniture
• Same functionality: Provides full 95° opening angle in a compact package.

For standard width doors, 35mm is fine. For narrow frames and small cabinets, 26mm is the professional choice.

Keywords: 26mm mini hinge, small cup hinge, narrow frame hinge benefits

Q: What door thickness and frame width are compatible with Model 1302?

A: Based on technical specifications and industry standards:

• Recommended door thickness: 12-16mm (with 9.5mm cup depth)
• Minimum frame width: Approximately 35-40mm (depending on door design and overlay selection)
• Door width guidance: For doors under 400mm width, trial mounting is recommended to verify minimum gap requirements
• Number of hinges: For doors up to 600mm wide, 2 hinges are typically sufficient; wider doors may require 3 hinges

For doors thinner than 12mm, please consult our thin door hinge series.

Keywords: door thickness compatibility, frame width requirements, mini hinge installation

Q: What drilling equipment is needed? Is it compatible with my existing production line?

A: Important: 26mm mini hinges require a 26mm Forstner bit – they are NOT compatible with standard 35mm drilling equipment.

• Required drill bit: 26mm diameter Forstner bit (available from major tool suppliers)
• Drilling depth: 10-10.5mm (for 9.5mm cup depth)
• Hole spacing: Standard 38mm screw hole spacing
• Edge distance: Standard 3-7mm from door edge (varies by overlay requirement)

Production planning: If your line currently uses 35mm hinges, switching to 26mm will require adding 26mm bits to your tooling inventory. We recommend ordering samples first to test your drilling setup before bulk orders.

Keywords: 26mm Forstner bit, mini hinge installation tools, drilling requirements

Q: Can you explain the cover options – Full Overlay, Half Overlay, and Insert? How do I choose?

A: The cover option determines how the door sits relative to the cabinet frame:

When ordering, specify your required cover type. The mounting plate height (H=0, H=2, etc.) also affects final door positioning. Contact us for assistance matching cover options to your cabinet design.

Keywords: full overlay hinge, half overlay hinge, inset hinge, cabinet door overlay options

Q: What quality testing does Model 1302 undergo? Is it suitable for commercial use?

A: Model 1302 meets industry testing standards for commercial and residential applications:

• Cycle testing: Pass 30,000 open-close cycles – equivalent to approximately 10 years of normal household use
• Salt spray testing: 24 hours corrosion resistance (nickel-plated finish) suitable for indoor environments
• Material: Cold-rolled steel construction with consistent thickness
• Quality control: 100% visual inspection before packaging

For comparison, 30,000 cycles is a common industry benchmark for standard-duty hinges. Premium hinges may test to 50,000+ cycles, while basic economy hinges may test to 20,000. Our 30,000-cycle rating represents reliable, mid-range durability suitable for most furniture applications.

Keywords: 30000 cycle test, hinge durability, salt spray test, quality certification

Q: Does this hinge meet European and North American market standards? Is it comparable to Blum or Hettich?

A: Model 1302 is designed to be functionally compatible with European-style mini hinge specifications commonly used in EU and North American markets.

• Compatibility: 26mm cup diameter, 38mm screw hole spacing, and slide-on mounting follow industry-standard patterns
• Market trends: The European and North American hinge market continues to grow, driven by demand for quality furniture hardware
• Brand alternatives: While major brands like Blum and Hettich dominate the premium segment, our hinge offers a cost-effective alternative with similar specifications for narrow frame applications
• Customization: OEM/ODM supported for private labeling to build your local brand

We recommend ordering samples to test compatibility with your specific cabinet designs before bulk commitment.

Keywords: European hinge standard, North American cabinet hardware, Blum alternative, Hettich compatible

Q: What customization options are available for branding and packaging?

A: We offer comprehensive OEM/ODM services for Model 1302 to help you build your brand in your local market:

• Custom logo: Laser engraving on hinge cup (MOQ: 20,000 pcs)
• Custom packaging: Branded boxes with your design, colors, and local language text (MOQ: 10,000 pcs)
• Custom printing on bags: Your brand on transparent inner bags (MOQ: 20,000 pcs)
• Master carton printing: Your brand on outer cartons (MOQ: 10,000 pcs)
• Barcode/SKU customization: Your part numbers and barcodes on packaging
• Custom specifications: Material thickness, finish, or minor design modifications (MOQ negotiable)

Send us your artwork or requirements – we create samples for approval before mass production.

Keywords: OEM hinge manufacturing, private label cabinet hinges, custom branding, hinge packaging customization

Q: What is the MOQ? Can I mix different models or cover types in one order?

A: Our standard MOQ is 10,000 pcs, with flexible mixing options to help you optimize inventory:

• Mixed models accepted: You can combine Model 1302 with other hinge models (different cup depths, soft-close options, etc.) in the same container
• Mixed cover options: Within Model 1302, you can order a mix of Full Overlay, Half Overlay, and Insert configurations to reach the 10,000 pcs MOQ
• Sample orders: 2-50 pcs available for testing (free samples, shipping collected)
• Trial orders: Smaller quantities may be considered for first-time customers – please inquire

Mixed container strategy: Combine different hinge types in one 20ft or 40ft container to maximize shipping efficiency while maintaining reasonable inventory levels of each model.

Keywords: hinge MOQ 10000, mixed container hinges, combine hinge types, flexible minimum order

Q: How are the hinges packaged? What are the container loading capacities?

A: Our standard export packaging is optimized for protection and maximum container utilization:

• Inner bag: 400 pcs per large transparent bag (anti-rust protection)
• Master carton: 400 pcs per carton
• 20ft container: Approximately 480,000 pcs

Carton dimensions: approximately 38 × 25 × 18 cm, gross weight ~13.5 kg.

Custom packaging available as noted in customization options.

Keywords: hinge packaging, container load capacity, 480000 pieces per 20ft, export packaging

Q: What is the production time? How long does shipping take to Europe/North America?

A: Standard production and shipping timelines:

• Production time: 30 days after deposit confirmation (for standard specifications)
• Custom/OEM orders: May require additional 7-14 days for sample approval before production
• Shipping to Europe: Approximately 25-35 days by sea from Shenzhen/Shantou ports to major EU ports (Rotterdam, Hamburg, etc.)
• Shipping to North America: Approximately 18-28 days to US West Coast, 25-35 days to East Coast

We recommend planning orders 2-3 months in advance for container shipments to account for production and transit time.

Keywords: hinge production time, shipping to Europe, shipping to North America, lead time cabinet hardware

Q: Can I get samples to test before placing a container order?

A: Yes, sample testing is strongly recommended – especially for 26mm mini hinges where drilling requirements differ from standard hinges.

• Free samples: 2-5 pieces per model (you pay shipping)
• Shipping: DHL/FedEx/UPS delivery in 3-5 business days to Europe and North America
• Sample cost for larger quantities: If you need 20+ pieces for production testing, we charge cost price (deducted from first bulk order)
• Customized samples: For OEM inquiries with logo/packaging, sample production takes 5-7 days

When requesting samples, please specify:

• Cover option (Full/Half/Insert)
• Your door thickness and frame width for testing
• Any custom requirements

Keywords: free hinge samples, test before bulk order, sample to Europe, sample to USA

Q: What’s the difference between this 26mm mini short arm and a 35mm short arm hinge?

A: While both are “short arm” designs, the cup diameter is the key difference:

Choose 26mm for ultra-narrow frames and small furniture where every millimeter counts. Choose 35mm short arm for standard narrow frame applications where 35mm cup is acceptable but arm length needs to be short.

Keywords: 26mm vs 35mm short arm hinge, mini hinge comparison, narrow frame hinge options

Q: Is there growing demand for mini hinges in the European market?

A: Yes, market analysis indicates steady growth in the European hinge market with several trends favoring mini hinges :

• Market size: The global door hinge market is projected to reach $6.5 billion by 2031, with Europe as a key region
• Design trends: European furniture emphasizes quality, design, and functionality – narrow frame modern furniture continues to gain popularity
• Customization demand: European consumers increasingly seek customized furniture solutions, driving demand for specialized hardware like mini hinges
• Key countries: Germany, Italy, UK, France, and Spain are major markets for furniture hardware

For European importers and manufacturers, offering 26mm mini hinges allows you to serve the growing narrow-frame furniture segment that standard 35mm hinges cannot address.

Keywords: European hinge market, narrow frame furniture trend, Germany cabinet hardware, Italy furniture market

Q: What about the North American market? Is there demand for 26mm mini hinges?

A: The North American hinge market shows steady growth with specific opportunities for mini hinges :

• Market drivers: Construction and furniture industries in the US and Canada continue to develop, with increasing consumer expectations for home quality
• Application: Mini hinges are used in North America for custom cabinetry, RV furniture, and small-scale projects
• Brand recognition: Major brands like Blum offer mini hinge lines in the US market, indicating established demand.
• Distribution: Specialized hardware distributors stock mini hinges for narrow frame applications.

For North American importers, 26mm mini hinges represent a niche but essential product category for customers building narrow-frame or small-scale furniture.

Keywords: North American hinge market, USA cabinet hardware, Canada furniture imports, mini hinge demand

Q: What after-sales support and warranty do you provide?

A: We provide comprehensive support for all our B2B partners:

• Warranty: 1-year warranty against manufacturing defects
• Replacement policy: Defective pieces replaced or credited (pro-rated based on quantity)
• Technical support: Installation guidance and troubleshooting available via email/WhatsApp
• Quality documentation: Batch test reports available upon request
• Response time: 24-hour response to quality inquiries
• Sample retention: We retain samples from each production run for quality reference

We aim for long-term partnerships with our European and North American customers – many have ordered from us for 5+ years.

Keywords: hinge warranty, after-sales support, replacement policy, technical support Europe

Q: What are your cooperation terms and payment methods?

A: Standard trading terms for international buyers:

• Cooperation term: FOB (Free on Board) – Shantou/Shenzhen ports, China
• Payment terms: T/T (30% deposit, 70% balance before shipment)
• Currency: USD, EUR, RMB accepted
• Documentation: Commercial invoice, packing list, bill of lading, certificate of origin, Form E (when applicable)
• Inspection: Pre-shipment inspection welcome (SGS, BV, or third-party)

For European and North American importers, FOB China terms are standard and allow you to control shipping arrangements with your preferred freight forwarder.

Keywords: FOB China hinge supplier, payment terms T/T, hinge import from China, certificate of origin

Q: Is Model 1302 compatible with existing 26mm mounting plates I may already have?

A: Compatibility depends on the specific plate design. Here’s what to check:

• Industry standard: 26mm mini hinges typically use 38mm screw hole spacing on mounting plates [citation:1]
• Plate height (H): Different plate heights (H=0, H=2, etc.) affect door overlay – ensure your plates match your overlay requirements
• Slide-on mechanism: Most 26mm mini hinges use slide-on attachment, but arm designs can vary between manufacturers

Recommendation: If you’re replacing an existing hinge line, send us samples or specifications of your current mounting plates. We can verify compatibility or manufacture matching plates. For new projects, we recommend using our plates to ensure perfect fit.

As noted in industry resources, hinge manufacturers have never standardized screw hole patterns completely [citation:1][citation:5]. Testing is always recommended when switching suppliers.

Keywords: hinge compatibility, 26mm mounting plate, replacement hinge fit, interchanging hinge brands
